| Manufacturer Part Number: | USB3300-EZK |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Interface - Controllers |
| Available Quantity: | 14226 Pieces |
| Unit Price: | Quote by Email |
| Description: | USB Controller USB 2.0, OTG ULPI Interface 32-QFN (5x5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | USB3300-EZK Datasheet |
| Internal Part Number | 898-USB3300-EZK | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | USB3300 Datasheet Update 17/Jul/2014 Datasheet Update 25/Jun/2015 USB3300 14/Jun/2016 | |
| PCN Assembly/Origin | Qualification Assembly Site 19/Mar/2014 SCC Site Qualification 20/Apr/2015 | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | USB Controllers | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Controllers | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Protocol | USB | |
| Function | Controller | |
| Interface | ULPI | |
| Standards | USB 2.0, OTG | |
| Voltage - Supply | 3 V ~ 3.6 V | |
| Current - Supply | - | |
| Operating Temperature | -40°C ~ 85°C | |

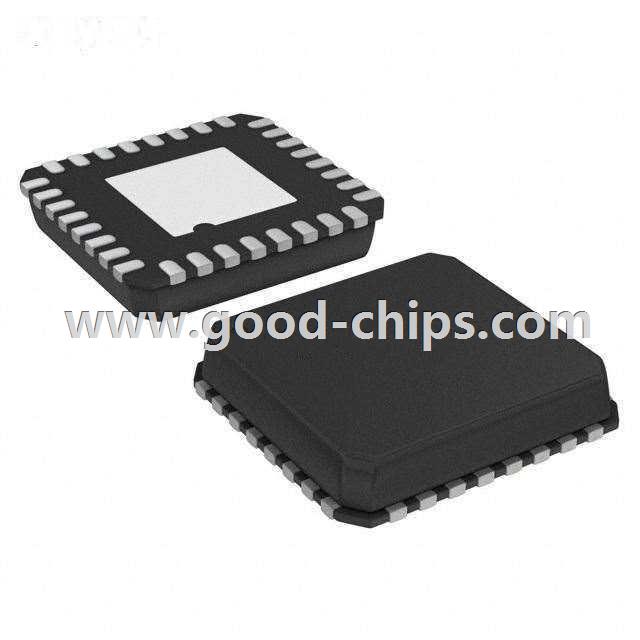

| Package / Case | 32-VFQFN Exposed Pad | |
| Supplier Device Package | 32-QFN (5x5) | |
| Standard Package | 490 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | USB3300-EZK | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
USB3300-EZK is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of USB3300-EZK is new and unused, you can buy USB3300-EZK Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for USB3300-EZK.
