Manufacturer Part Number: | UPL220-020 |
---|---|
Manufacturer: | Bel Power Solutions |
Product Category: | Coaxial Connectors (RF) |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

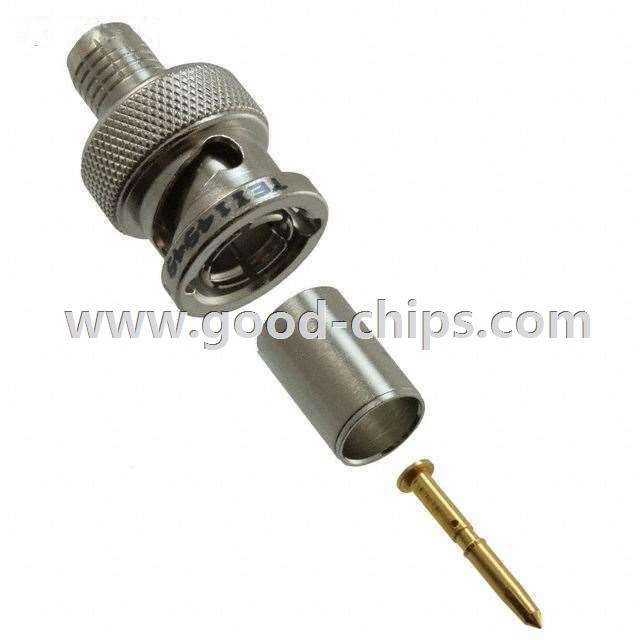

Description: | BNC Connector Plug, Male Pin 75 Ohm Free Hanging (In-Line) Crimp |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | UPL220-020 Datasheet |
Internal Part Number | 898-UPL220-020 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Configured Solutions Video Patching Benefits of DS-3 Lines | |
Featured Product | Connectivity Solutions | |
Category | Connectors, Interconnects | |
Family | Coaxial Connectors (RF) | |
Manufacturer | Cinch Connectivity Solutions Trompeter | |
Series | 220 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | BNC | |
Connector Type | Plug, Male Pin | |
Contact Termination | Crimp | |
Shield Termination | Crimp | |
Impedance | 75 Ohm | |
Mounting Type | Free Hanging (In-Line) | |
Cable Group | Belden 9248 | |
Fastening Type | Bayonet Lock | |
Frequency - Max | 4GHz | |
Features | - | |
Housing Color | Silver | |
Ingress Protection | - | |
Body Material | Brass | |
Body Finish | Nickel | |
Center Contact Material | Brass | |
Center Contact Plating | Gold | |
Dielectric Material | Polytetrafluoroethylene (PTFE) | |
Voltage Rating | 500V | |
Operating Temperature | -65°C ~ 165°C | |
Standard Package | 25 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | UPL220-020 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
UPL220-020 is in stock for immediate shipping now. We are the distributor of Bel Power Solutions all series components. The condition of UPL220-020 is new and unused, you can buy UPL220-020 Bel Power Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for UPL220-020.
