| Manufacturer Part Number: | UPG2413T6M-A |
|---|---|
| Manufacturer: | CEL |
| Product Category: | RF Switches |
| Available Quantity: | 9042 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Switch IC 802.11b/g SP3T 3GHz 50 Ohm 12-TSQFN (2x2) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | UPG2413T6M-A Datasheet |
| Internal Part Number | 898-UPG2413T6M-A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Featured Product | RFIC Switches | |
| Category | RF/IF and RFID | |
| Family | RF Switches | |
| Manufacturer | CEL | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Frequency - Lower | 500MHz | |
| Frequency - Upper | 3GHz | |
| Isolation @ Frequency | 16dB @ 3GHz (typ) | |
| Insertion Loss @ Frequency | 0.6dB @ 3GHz | |
| IIP3 | - | |
| Topology | Reflective | |
| Circuit | SP3T | |
| P1dB | 33dBm (typ) IP1dB | |
| Features | - | |
| Impedance | 50 Ohm | |
| Operating Temperature | -45°C ~ 85°C | |
| Voltage - Supply | - | |
| RF Type | 802.11b/g | |

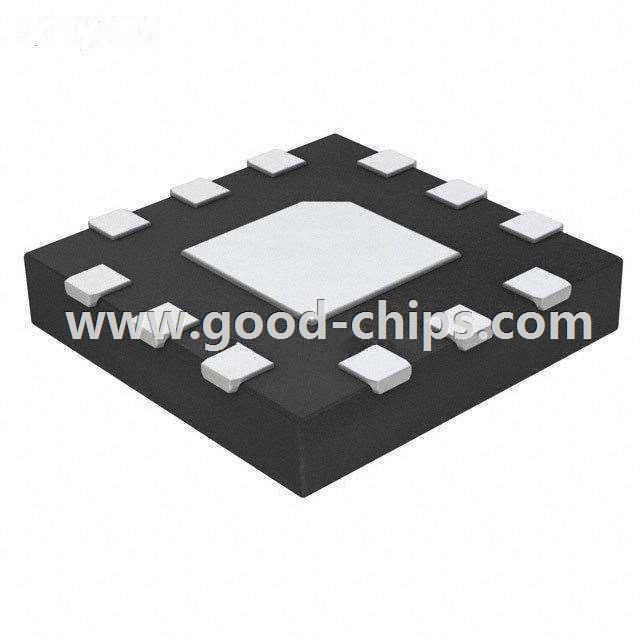

| Package / Case | 12-XFQFN Exposed Pad | |
| Supplier Device Package | 12-TSQFN (2x2) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | UPG2413T6M-A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
UPG2413T6M-A is in stock for immediate shipping now. We are the distributor of CEL all series components. The condition of UPG2413T6M-A is new and unused, you can buy UPG2413T6M-A CEL with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for UPG2413T6M-A.
