| Manufacturer Part Number: | UPG2409T6X-E2-A |
|---|---|
| Manufacturer: | CEL |
| Product Category: | RF Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Switch IC 802.11a/b/g/n SPDT 6GHz 50 Ohm 6-TSON |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | UPG2409T6X-E2-A Datasheet |
| Internal Part Number | 898-UPG2409T6X-E2-A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Featured Product | RFIC Switches | |
| PCN Obsolescence/ EOL | EOL 12/Aug/2016 | |
| Category | RF/IF and RFID | |
| Family | RF Switches | |
| Manufacturer | CEL | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Last Time Buy | |
| Frequency - Lower | 50MHz | |
| Frequency - Upper | 6GHz | |
| Isolation @ Frequency | 27dB @ 6GHz (typ) | |
| Insertion Loss @ Frequency | 0.65dB @ 6GHz | |
| IIP3 | 60dBm (typ) | |
| Topology | Reflective | |
| Circuit | SPDT | |
| P1dB | 36dBm (typ) IP1dB | |
| Features | - | |
| Impedance | 50 Ohm | |
| Operating Temperature | -45°C ~ 85°C | |
| Voltage - Supply | - | |
| RF Type | 802.11a/b/g/n | |

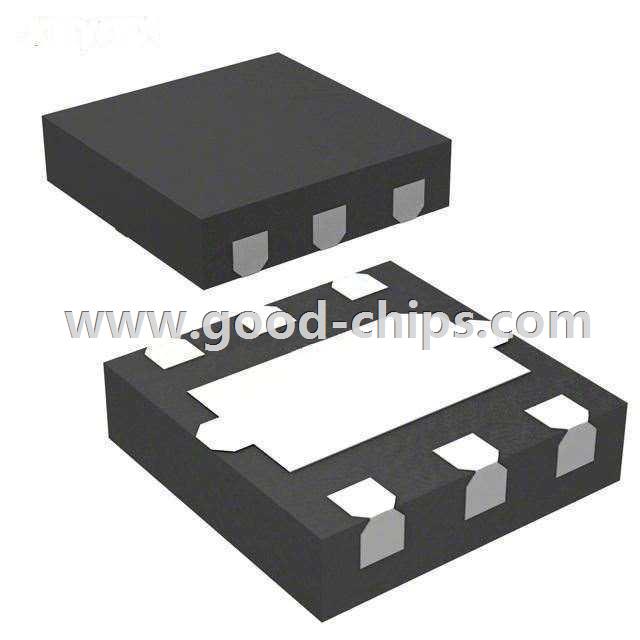

| Package / Case | 6-XFDFN Exposed Pad | |
| Supplier Device Package | 6-TSON | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | UPG2409T6X-E2-A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
UPG2409T6X-E2-A is in stock for immediate shipping now. We are the distributor of CEL all series components. The condition of UPG2409T6X-E2-A is new and unused, you can buy UPG2409T6X-E2-A CEL with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for UPG2409T6X-E2-A.
