| Manufacturer Part Number: | UPG2301T5L-E2-A |
|---|---|
| Manufacturer: | CEL |
| Product Category: | RF Amplifiers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Amplifier IC Bluetooth 2.4GHz ~ 2.5GHz 12-TSQFN (2x2) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | UPG2301T5L-E2-A Datasheet |
| Internal Part Number | 898-UPG2301T5L-E2-A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| PCN Obsolescence/ EOL | Multiple Devices 02/Jul/2013 | |
| Category | RF/IF and RFID | |
| Family | RF Amplifiers | |
| Manufacturer | CEL | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Obsolete | |
| Frequency | 2.4GHz ~ 2.5GHz | |
| P1dB | - | |
| Gain | 23dB | |
| Noise Figure | - | |
| RF Type | Bluetooth | |
| Voltage - Supply | 2.7 V ~ 3.6 V | |
| Current - Supply | 120mA | |
| Test Frequency | - | |

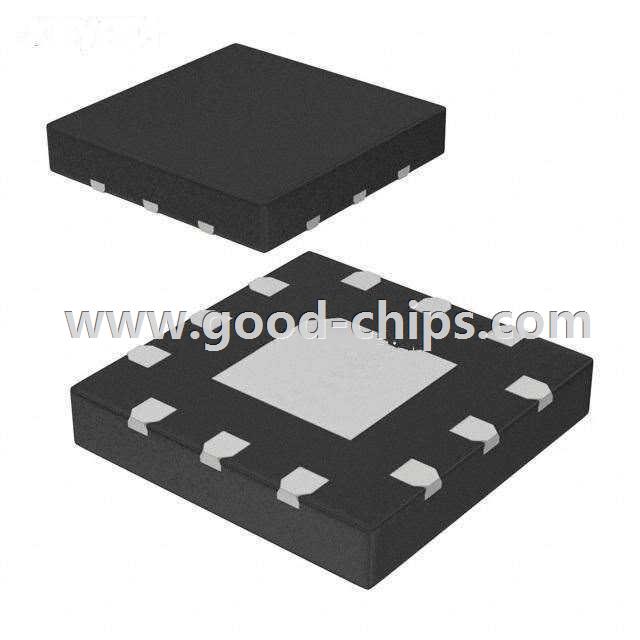

| Package / Case | 12-XFQFN Exposed Pad | |
| Supplier Device Package | 12-TSQFN (2x2) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | UPG2301T5L-E2-A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
UPG2301T5L-E2-A is in stock for immediate shipping now. We are the distributor of CEL all series components. The condition of UPG2301T5L-E2-A is new and unused, you can buy UPG2301T5L-E2-A CEL with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for UPG2301T5L-E2-A.
