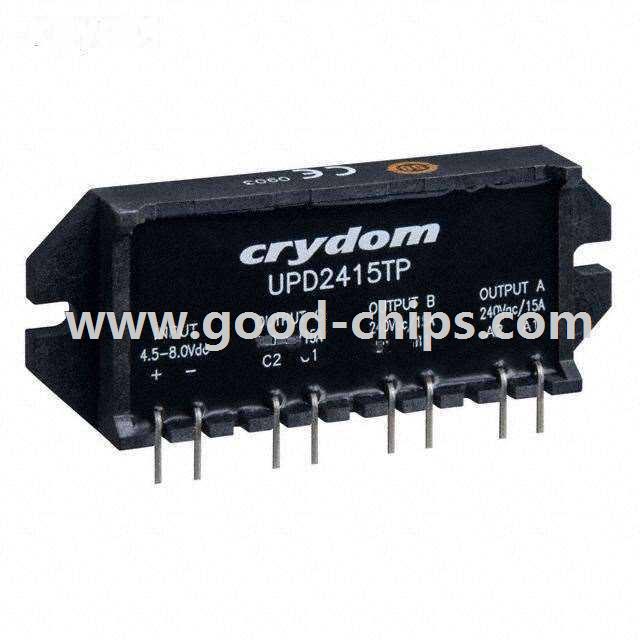

Manufacturer Part Number: | UPD2415TP-10 |
---|---|
Manufacturer: | Crydom Co. |
Product Category: | Solid State Relays |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Solid State Relay 3PST (3 Form A) 6-SIP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | UPD2415TP-10 Datasheet |
Internal Part Number | 898-UPD2415TP-10 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | Declaration of Conformity | |
Category | Relays | |
Family | Solid State Relays | |
Manufacturer | Crydom Co. | |
Series | UPD24TP | |
Packaging | Bulk | |
Part Status | Active | |
Circuit | 3PST (3 Form A) | |
Output Type | AC | |
On-State Resistance (Max) | - | |
Load Current | 15A | |
Voltage - Input | 4.5 ~ 8VDC | |
Voltage - Load | 24 ~ 280 V | |
Mounting Type | Through Hole | |
Termination Style | PC Pin | |
Package / Case | 6-SIP | |
Supplier Device Package | 6-SIP | |
Relay Type | Relay | |
Standard Package | 20 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | UPD2415TP-10 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
UPD2415TP-10 is in stock for immediate shipping now. We are the distributor of Crydom Co. all series components. The condition of UPD2415TP-10 is new and unused, you can buy UPD2415TP-10 Crydom Co. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for UPD2415TP-10.
