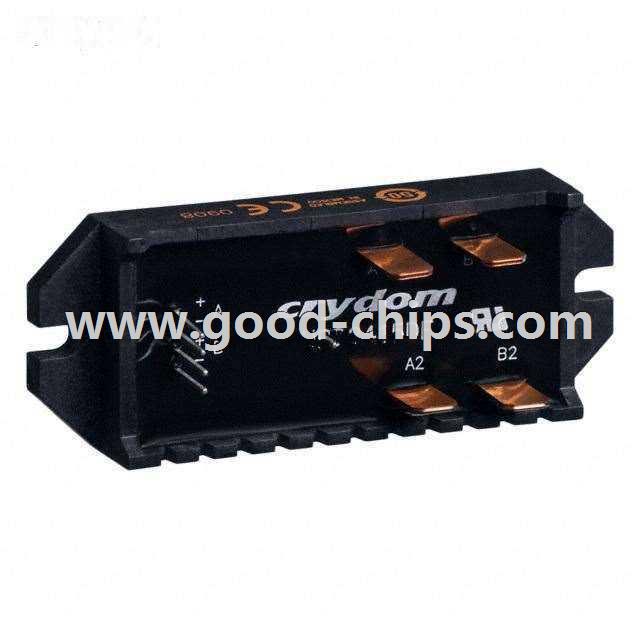

| Manufacturer Part Number: | UPD2415DF |
|---|---|
| Manufacturer: | Crydom Co. |
| Product Category: | Solid State Relays |
| Available Quantity: | 9025 Pieces |
| Unit Price: | Quote by Email |
| Description: | Solid State Relay DPST (2 Form A) Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | UPD2415DF Datasheet |
| Internal Part Number | 898-UPD2415DF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Declaration of Conformity | |
| Product Training Modules | Solid State Relays | |
| Featured Product | UPD Series | |
| Online Catalog | UPD24D Series | |
| Category | Relays | |
| Family | Solid State Relays | |
| Manufacturer | Crydom Co. | |
| Series | UPD24D | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | DPST (2 Form A) | |
| Output Type | AC, Zero Cross | |
| On-State Resistance (Max) | - | |
| Load Current | 15A | |
| Voltage - Input | 3 ~ 15VDC | |
| Voltage - Load | 24 ~ 280 V | |
| Mounting Type | Chassis Mount or Panel Mount | |
| Termination Style | Quick Connect - 0.250" (6.3mm) | |
| Package / Case | Module | |
| Supplier Device Package | - | |
| Relay Type | Relay | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | UPD2415DF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
UPD2415DF is in stock for immediate shipping now. We are the distributor of Crydom Co. all series components. The condition of UPD2415DF is new and unused, you can buy UPD2415DF Crydom Co. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for UPD2415DF.
