Manufacturer Part Number: | UPC8236T6N-E2-A |
---|---|
Manufacturer: | CEL |
Product Category: | RF Amplifiers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RF Amplifier IC GPS 1575.42MHz 6-TSON |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | UPC8236T6N-E2-A Datasheet |
Internal Part Number | 898-UPC8236T6N-E2-A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | IoT Product Selector | |
Category | RF/IF and RFID | |
Family | RF Amplifiers | |
Manufacturer | CEL | |
Series | - | |
Packaging | Cut Tape (CT) | |
Part Status | Obsolete | |
Frequency | 1575.42MHz | |
P1dB | -18dBm | |
Gain | 17dB ~ 22dB | |
Noise Figure | 0.8dB | |
RF Type | GPS | |
Voltage - Supply | 1.6 V ~ 3.3 V | |
Current - Supply | 6.5mA | |
Test Frequency | 1575.42MHz | |

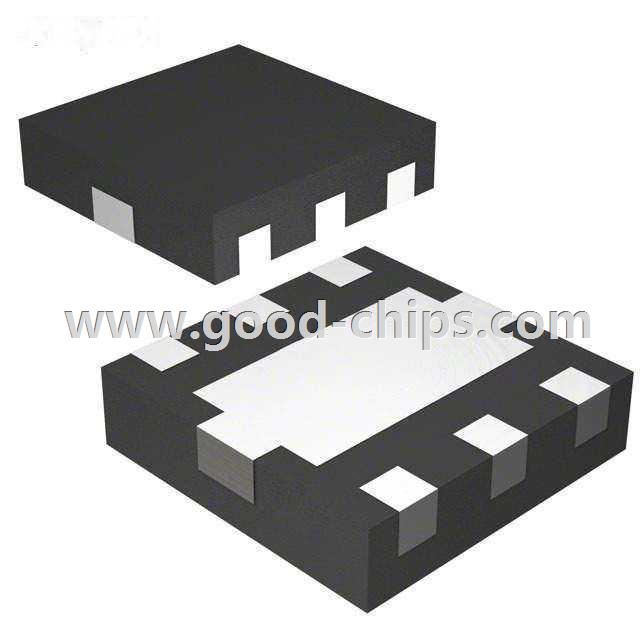

Package / Case | 6-XFDFN Exposed Pad | |
Supplier Device Package | 6-TSON | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | UPC8236T6N-E2-A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
UPC8236T6N-E2-A is in stock for immediate shipping now. We are the distributor of CEL all series components. The condition of UPC8236T6N-E2-A is new and unused, you can buy UPC8236T6N-E2-A CEL with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for UPC8236T6N-E2-A.
