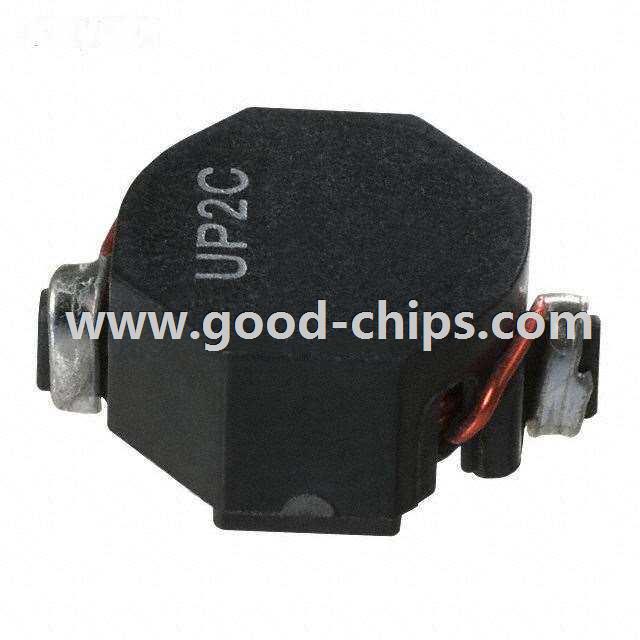

| Manufacturer Part Number: | UP2C-3R3-R |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 3.3µH Unshielded Wirewound Inductor 5.9A 10.5 mOhm Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | UP2C-3R3-R Datasheet |
| Internal Part Number | 898-UP2C-3R3-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Coiltronics Magnetics Facility 31/Aug/2013 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Eaton | |
| Series | UNI-PAC™ 2C | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 3.3µH | |
| Tolerance | ±20% | |
| Current Rating | 5.9A | |
| Current - Saturation | 6.84A | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 10.5 mOhm | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.507" L x 0.370" W (12.90mm x 9.40mm) | |
| Height - Seated (Max) | 0.204" (5.20mm) | |
| Standard Package | 900 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | UP2C-3R3-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
UP2C-3R3-R is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of UP2C-3R3-R is new and unused, you can buy UP2C-3R3-R Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for UP2C-3R3-R.
