| Manufacturer Part Number: | UMF24NTR |
|---|---|
| Manufacturer: | Rohm Semiconductor |
| Product Category: | Transistors - Bipolar (BJT) - Arrays, Pre-Biased |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS NPN PREBIAS/NPN 0.15W UMT6 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | UMF24NTR Datasheet |
| Internal Part Number | 898-UMF24NTR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | UMF24NTR Device 10/Sep/2015 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Arrays, Pre-Biased | |
| Manufacturer | Rohm Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Transistor Type | 1 NPN Pre-Biased, 1 NPN | |
| Current - Collector (Ic) (Max) | 100mA, 150mA | |
| Voltage - Collector Emitter Breakdown (Max) | 50V | |
| Resistor - Base (R1) (Ohms) | 10k | |
| Resistor - Emitter Base (R2) (Ohms) | 10k | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 5mA, 5V | |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA | |
| Current - Collector Cutoff (Max) | 500nA | |
| Frequency - Transition | 250MHz | |
| Power - Max | 150mW | |
| Mounting Type | Surface Mount | |

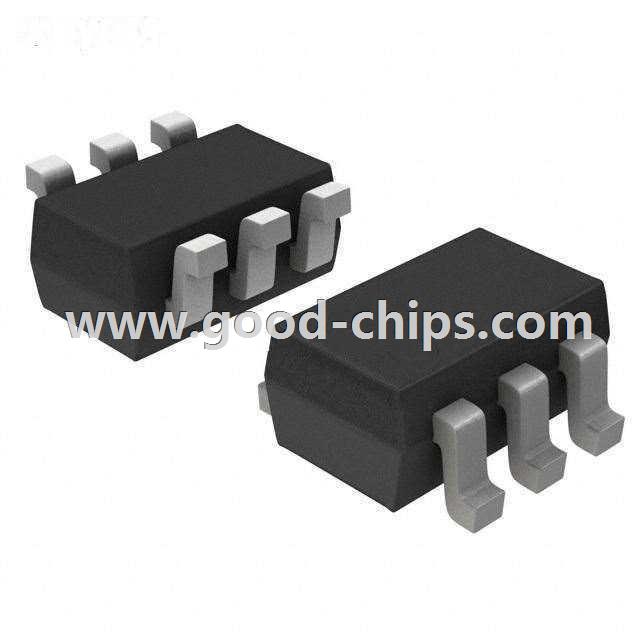

| Package / Case | 6-TSSOP, SC-88, SOT-363 | |
| Supplier Device Package | UMT6 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | UMF24NTR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
UMF24NTR is in stock for immediate shipping now. We are the distributor of Rohm Semiconductor all series components. The condition of UMF24NTR is new and unused, you can buy UMF24NTR Rohm Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for UMF24NTR.
