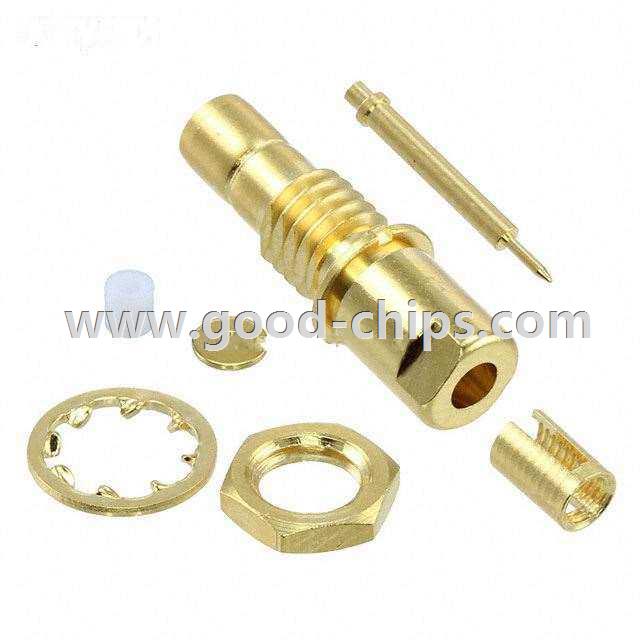

.jpg)
| Manufacturer Part Number: | UM-QPJ-196/U(40) |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | Coaxial Connectors (RF) |
| Available Quantity: | 9020 Pieces |
| Unit Price: | Quote by Email |
| Description: | Ultra Miniature Coaxial Connector Plug, Female Socket 50 Ohm Panel Mount, Bulkhead Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | UM-QPJ-196/U(40) Datasheet |
| Internal Part Number | 898-UM-QPJ-196/U(40) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | UM Series | |
| Category | Connectors, Interconnects | |
| Family | Coaxial Connectors (RF) | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | UM | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Style | Ultra Miniature Coaxial | |
| Connector Type | Plug, Female Socket | |
| Contact Termination | Solder | |
| Shield Termination | Clamp | |
| Impedance | 50 Ohm | |
| Mounting Type | Panel Mount, Bulkhead | |
| Cable Group | RG-196 | |
| Fastening Type | Snap-On | |
| Frequency - Max | 1GHz | |
| Features | - | |
| Housing Color | Gold | |
| Ingress Protection | - | |
| Body Material | Brass | |
| Body Finish | Gold | |
| Center Contact Material | Brass | |
| Center Contact Plating | Gold | |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | |
| Voltage Rating | - | |
| Operating Temperature | -30°C ~ 60°C | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | UM-QPJ-196/U(40) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
UM-QPJ-196/U(40) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of UM-QPJ-196/U(40) is new and unused, you can buy UM-QPJ-196/U(40) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for UM-QPJ-196/U(40).
