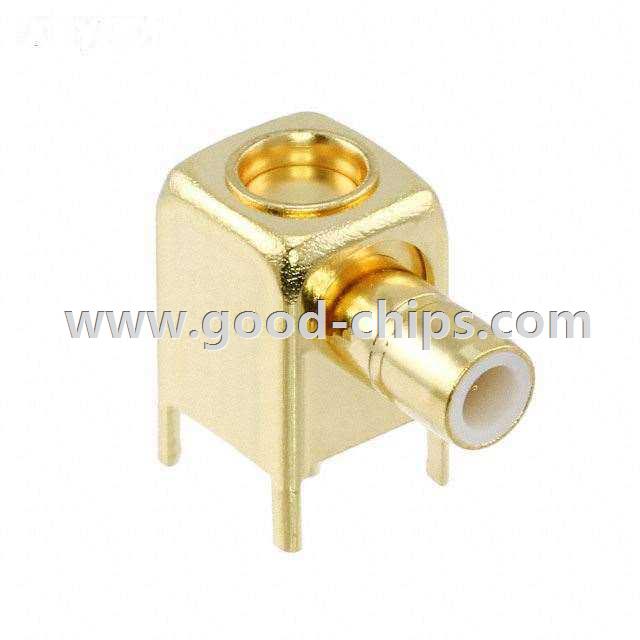

Manufacturer Part Number: | UM-LR-PC(41) |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | Coaxial Connectors (RF) |
Available Quantity: | 9018 Pieces |
Unit Price: | Quote by Email |
Description: | Ultra Miniature Coaxial Connector Receptacle, Male Pin 50 Ohm Through Hole, Right Angle Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | UM-LR-PC(41) Datasheet |
Internal Part Number | 898-UM-LR-PC(41) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | UM Series | |
Category | Connectors, Interconnects | |
Family | Coaxial Connectors (RF) | |
Manufacturer | Hirose Electric Co Ltd | |
Series | UM | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | Ultra Miniature Coaxial | |
Connector Type | Receptacle, Male Pin | |
Contact Termination | Solder | |
Shield Termination | Solder | |
Impedance | 50 Ohm | |
Mounting Type | Through Hole, Right Angle | |
Cable Group | - | |
Fastening Type | Snap-On | |
Frequency - Max | 1GHz | |
Features | - | |
Housing Color | Gold | |
Ingress Protection | - | |
Body Material | Brass | |
Body Finish | Gold | |
Center Contact Material | Brass | |
Center Contact Plating | Gold | |
Dielectric Material | Polytetrafluoroethylene (PTFE) | |
Voltage Rating | - | |
Operating Temperature | -55°C ~ 85°C | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | UM-LR-PC(41) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
UM-LR-PC(41) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of UM-LR-PC(41) is new and unused, you can buy UM-LR-PC(41) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for UM-LR-PC(41).
