Manufacturer Part Number: | ULV4F2BSS544 |
---|---|
Manufacturer: | E-Switch |
Product Category: | Pushbutton Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

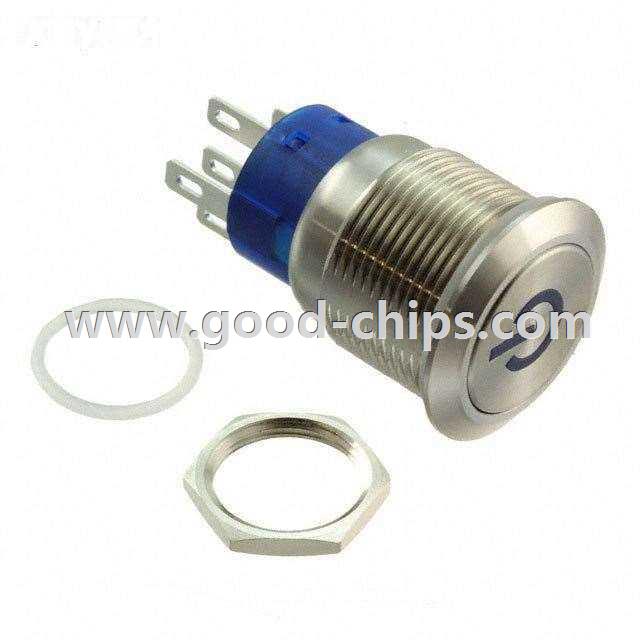

Description: | Pushbutton Switch SPDT Vandal Resistant, Illuminated Panel Mount, Front |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ULV4F2BSS544 Datasheet |
Internal Part Number | 898-ULV4F2BSS544 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Anti-Vandal ULV Series | |
Featured Product | ULV4 Series Anti-Vandal Push-Button Switches | |
3D Model | ULV4F2Bxx5xx.stp | |
Online Catalog | ULV4 Series | |
Category | Switches | |
Family | Pushbutton Switches | |
Manufacturer | E-Switch | |
Series | ULV4 | |
Packaging | Bulk | |
Part Status | Active | |
Type | Vandal Resistant, Illuminated | |
Circuit | SPDT | |
Switch Function | On-Mom | |
Current Rating | 3A (AC) | |
Voltage Rating - AC | 250V | |
Voltage Rating - DC | - | |
Actuator Type | Round, Button, Flush | |
Color - Actuator/Cap | Silver | |
Illumination Type, Color | LED, Blue | |
Illumination Voltage (Nominal) | 12 VDC | |
Mounting Type | Panel Mount, Front | |
Termination Style | Solder, Quick Connect - 0.110" (2.8mm) | |
Ingress Protection | IP67 - Dust Tight, Waterproof | |
Features | Power Symbol | |
Panel Cutout Dimensions | Circular - 19.20mm Dia | |
Operating Temperature | -20°C ~ 55°C | |
Mechanical Life | 500,000 Cycles | |
Electrical Life | 50,000 Cycles | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ULV4F2BSS544 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ULV4F2BSS544 is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of ULV4F2BSS544 is new and unused, you can buy ULV4F2BSS544 E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ULV4F2BSS544.
