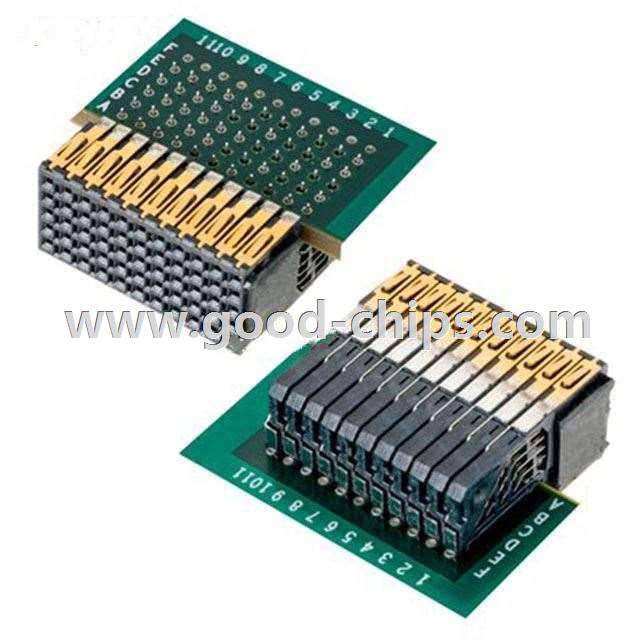

| Manufacturer Part Number: | UHM-S095B3-5AP1-TG30 |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Backplane Connectors - Hard Metric, Standard |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 95 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | UHM-S095B3-5AP1-TG30 Datasheet |
| Internal Part Number | 898-UHM-S095B3-5AP1-TG30 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | UHM-S095B3-5AP1-xxxx.igs UHM-S095B3-5AP1-xxxx.stp UHM-S095B3-5AP1-xxxx.x_t | |
| PCN Design/Specification | HSHM, UHM Voltage 15/Oct/2014 | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - Hard Metric, Standard | |
| Manufacturer | 3M | |
| Series | UHM | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle, Female Sockets | |
| Connector Style | B 19 | |
| Number of Positions | 95 | |
| Number of Positions Loaded | All | |
| Pitch | 0.079" (2.00mm) | |
| Number of Rows | 5 | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Press-Fit | |
| Connector Usage | CompactPCI | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Current Rating | 1A | |
| Voltage Rating | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Features | Upper and Lower Shield | |
| Standard Package | 130 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | UHM-S095B3-5AP1-TG30 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
UHM-S095B3-5AP1-TG30 is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of UHM-S095B3-5AP1-TG30 is new and unused, you can buy UHM-S095B3-5AP1-TG30 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for UHM-S095B3-5AP1-TG30.
