Manufacturer Part Number: | UH4PDC-M3/86A |
---|---|
Manufacturer: | Vishay BC Components |
Product Category: | Diodes - Rectifiers - Arrays |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Diode Array 1 Pair Common Cathode Standard 200V 2A Surface Mount TO-277, 3-PowerDFN |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | UH4PDC-M3/86A Datasheet |
Internal Part Number | 898-UH4PDC-M3/86A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Arrays | |
Manufacturer | Vishay Semiconductor Diodes Division | |
Series | eSMP® | |
Packaging | Tape & Reel (TR) | |
Part Status | Not Available | |
Diode Configuration | 1 Pair Common Cathode | |
Diode Type | Standard | |
Voltage - DC Reverse (Vr) (Max) | 200V | |
Current - Average Rectified (Io) (per Diode) | 2A | |
Voltage - Forward (Vf) (Max) @ If | 1.05V @ 2A | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | 25ns | |
Current - Reverse Leakage @ Vr | 5µA @ 200V | |
Mounting Type | Surface Mount | |

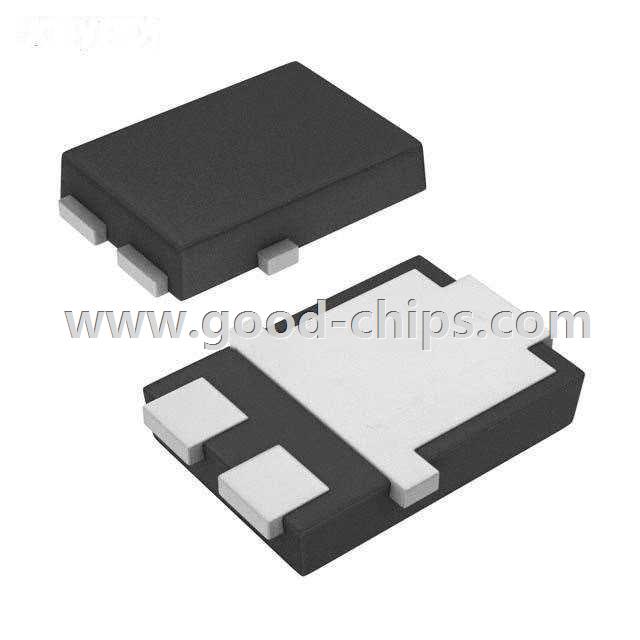

Package / Case | TO-277, 3-PowerDFN | |
Supplier Device Package | TO-277A (SMPC) | |
Standard Package | 1,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | UH4PDC-M3/86A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
UH4PDC-M3/86A is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of UH4PDC-M3/86A is new and unused, you can buy UH4PDC-M3/86A Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for UH4PDC-M3/86A.
