Manufacturer Part Number: | UG-274/U(40) |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | Coaxial Connectors (RF) - Adapters |
Available Quantity: | 9015 Pieces |
Unit Price: | Quote by Email |

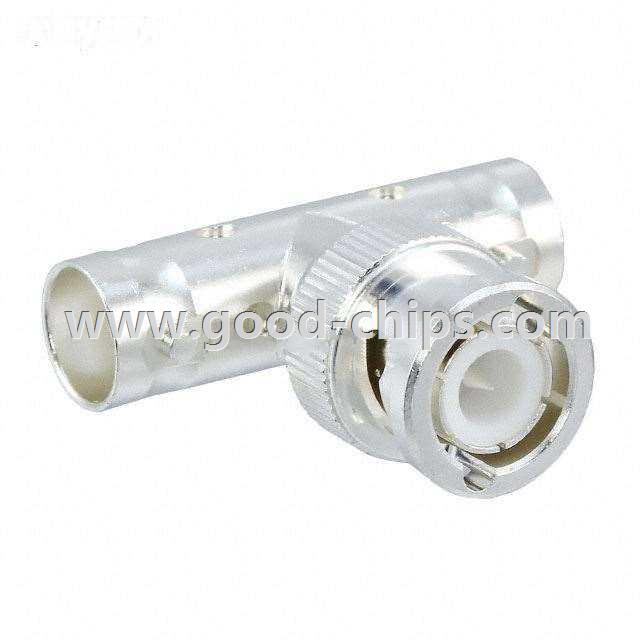

Description: | Adapter Coaxial Connector BNC Plug, Male Pin To BNC Jack, Female Socket (2) 50 Ohm |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | UG-274/U(40) Datasheet |
Internal Part Number | 898-UG-274/U(40) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Coaxial, RF Adapters | |
Category | Connectors, Interconnects | |
Family | Coaxial Connectors (RF) - Adapters | |
Manufacturer | Hirose Electric Co Ltd | |
Series | BNC | |
Packaging | Bulk | |
Part Status | Active | |
Adapter Type | Plug to Jack | |
Adapter Series | BNC to BNC, Dual | |
Center Gender | Male to Female | |
Convert From (Adapter End) | BNC Plug, Male Pin | |
Convert To (Adapter End) | BNC Jack, Female Socket (2) | |
Conversion Type | Same Series | |
Impedance | 50 Ohm | |
Style | T-Shape | |
Mounting Type | Free Hanging (In-Line) | |
Frequency - Max | 4GHz | |
Ingress Protection | - | |
Features | - | |
Body Material | Brass | |
Body Finish | Silver | |
Dielectric Material | Polytetrafluoroethylene (PTFE) | |
Center Contact Material | Beryllium Copper; Brass | |
Center Contact Plating | Silver | |
Mating Cycles | 1000 | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | UG-274/U(40) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
UG-274/U(40) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of UG-274/U(40) is new and unused, you can buy UG-274/U(40) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for UG-274/U(40).
