Manufacturer Part Number: | UFT20020 |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | Diodes - Rectifiers - Arrays |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

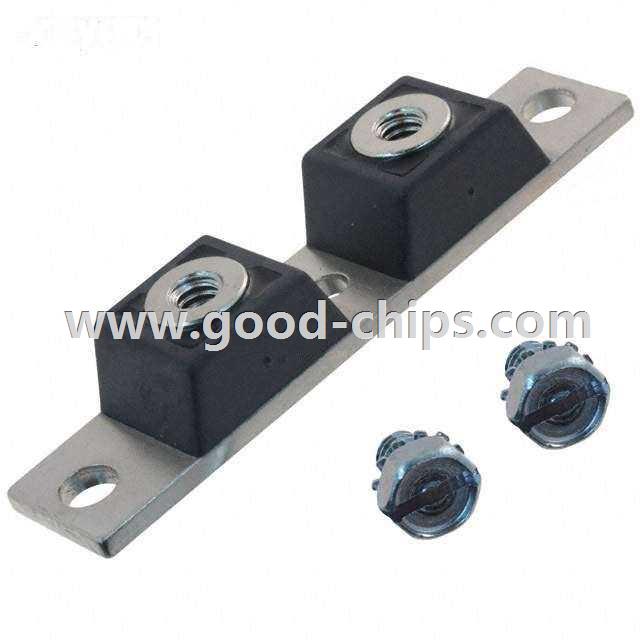

Description: | Diode Array 1 Pair Common Cathode Standard 200V 100A Screw Mount Module |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | UFT20020 Datasheet |
Internal Part Number | 898-UFT20020 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | Multiple Devices 30/Oct/2014 | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Arrays | |
Manufacturer | Microsemi Corporation | |
Series | - | |
Packaging | Bulk | |
Part Status | Obsolete | |
Diode Configuration | 1 Pair Common Cathode | |
Diode Type | Standard | |
Voltage - DC Reverse (Vr) (Max) | 200V | |
Current - Average Rectified (Io) (per Diode) | 100A | |
Voltage - Forward (Vf) (Max) @ If | 975mV @ 100A | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | 50ns | |
Current - Reverse Leakage @ Vr | 50µA @ 200V | |
Mounting Type | Screw Mount | |
Package / Case | Module | |
Supplier Device Package | Module | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | UFT20020 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
UFT20020 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of UFT20020 is new and unused, you can buy UFT20020 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for UFT20020.
