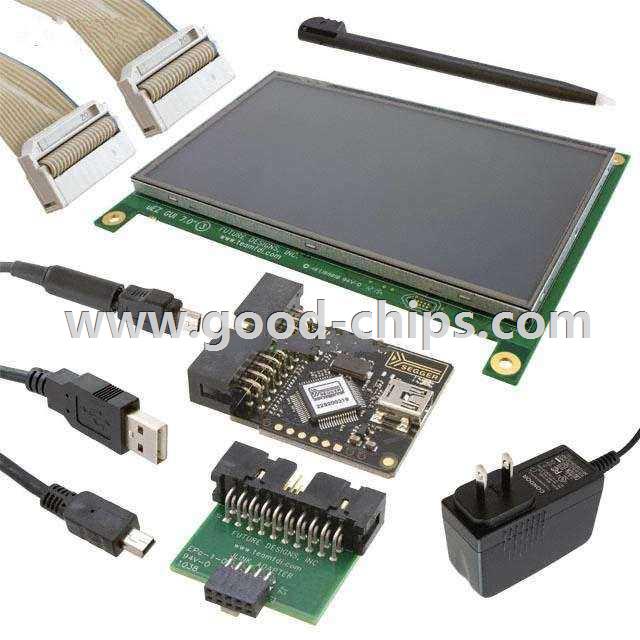

| Manufacturer Part Number: | UEZGUI-1788-70WVT |
|---|---|
| Manufacturer: | Future Designs Inc. |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |
| Description: | LPC1788 uEZ® GUI Series Displays, LCD Touch Screen Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | UEZGUI-1788-70WVT Datasheet |
| Internal Part Number | 898-UEZGUI-1788-70WVT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | µEZ GUI | |
| Design Resources | UEZGUI 7.0" Schematic Development Tool Selector | |
| Featured Product | 7.0" Resistive Touchscreen LCD GUI | |
| PCN Design/Specification | LCD Power Update 20/Apr/2015 | |
| Online Catalog | uEZ® GUI Evaluation Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Future Designs Inc. | |
| Series | uEZ® GUI | |
| Part Status | Active | |
| Main Purpose | Displays, LCD Touch Screen | |
| Embedded | Yes, MCU, 32-Bit | |
| Utilized IC / Part | LPC1788 | |
| Primary Attributes | 7" 800x480 WVGA | |
| Secondary Attributes | Graphical User Interface | |
| Supplied Contents | Board, Cables, Power Supply | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | UEZGUI-1788-70WVT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
UEZGUI-1788-70WVT is in stock for immediate shipping now. We are the distributor of Future Designs Inc. all series components. The condition of UEZGUI-1788-70WVT is new and unused, you can buy UEZGUI-1788-70WVT Future Designs Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for UEZGUI-1788-70WVT.
