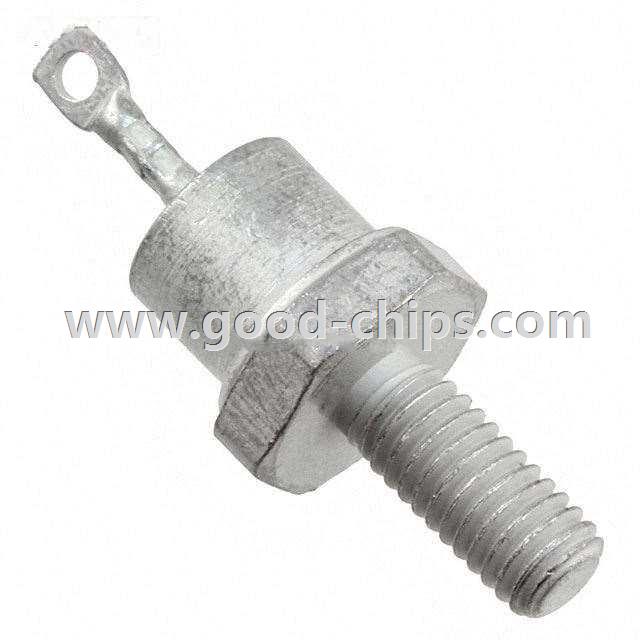

Manufacturer Part Number: | UES706HR2 |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | Diodes - Rectifiers - Single |
Available Quantity: | 9011 Pieces |
Unit Price: | Quote by Email |
Description: | DIODE GEN PURP 400V 20A DO4 |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | UES706HR2 Datasheet |
Internal Part Number | 898-UES706HR2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Standard Diode | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Single | |
Manufacturer | Microsemi Corporation | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Diode Type | Standard | |
Voltage - DC Reverse (Vr) (Max) | 400V | |
Current - Average Rectified (Io) | 20A (DC) | |
Voltage - Forward (Vf) (Max) @ If | 1.25V @ 20A | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | 50ns | |
Current - Reverse Leakage @ Vr | 50µA @ 400V | |
Capacitance @ Vr, F | - | |
Mounting Type | Chassis, Stud Mount | |
Package / Case | DO-203AA, DO-4, Stud | |
Supplier Device Package | DO-4 | |
Operating Temperature - Junction | -55°C ~ 150°C | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | UES706HR2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
UES706HR2 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of UES706HR2 is new and unused, you can buy UES706HR2 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for UES706HR2.
