| Manufacturer Part Number: | UCS1002-2-BP-TR |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | PMIC - Power Management - Specialized |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | USB Dedicated Charging Port (DCP), Power Switch PMIC 20-QFN (4x4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | UCS1002-2-BP-TR Datasheet |
| Internal Part Number | 898-UCS1002-2-BP-TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Qualification QFN-28,20,16 Packages 26/Dec/2013 Qualification Report 28/Jan/2014 Qualification Assembly Site 19/Mar/2014 | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Power Management - Specialized | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Applications | USB Dedicated Charging Port (DCP), Power Switch | |
| Current - Supply | 650µA | |
| Voltage - Supply | 2.9 V ~ 5.5 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

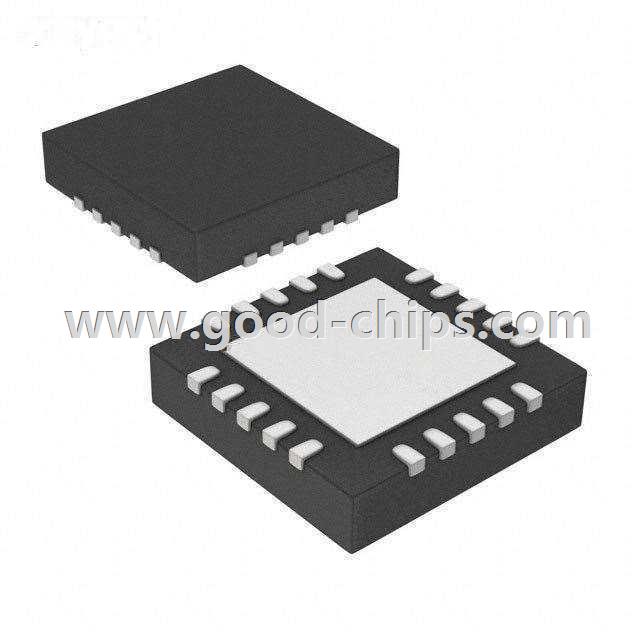

| Package / Case | 20-VFQFN Exposed Pad | |
| Supplier Device Package | 20-QFN (4x4) | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | UCS1002-2-BP-TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
UCS1002-2-BP-TR is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of UCS1002-2-BP-TR is new and unused, you can buy UCS1002-2-BP-TR Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for UCS1002-2-BP-TR.
