Manufacturer Part Number: | UCLAMP1071P.TNT |
---|---|
Manufacturer: | Semtech Corporation |
Product Category: | TVS - Diodes |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | TVS DIODE 10VWM 25VC SGP1610N2 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | UCLAMP1071P.TNT Datasheet |
Internal Part Number | 898-UCLAMP1071P.TNT | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Automotive, AEC-Q100, uClamp®xx71P Series | |
Category | Circuit Protection | |
Family | TVS - Diodes | |
Manufacturer | Semtech Corporation | |
Series | Automotive, AEC-Q100, uClamp® | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Zener | |
Unidirectional Channels | 1 | |
Bidirectional Channels | - | |
Voltage - Reverse Standoff (Typ) | 10V (Max) | |
Voltage - Breakdown (Min) | 12V | |
Voltage - Clamping (Max) @ Ipp | 25V | |
Current - Peak Pulse (10/1000µs) | 60A (8/20µs) | |
Power - Peak Pulse | - | |
Power Line Protection | No | |
Applications | Automotive | |
Capacitance @ Frequency | 350pF @ 1MHz | |
Operating Temperature | -40°C ~ 125°C (TJ) | |
Mounting Type | Surface Mount | |

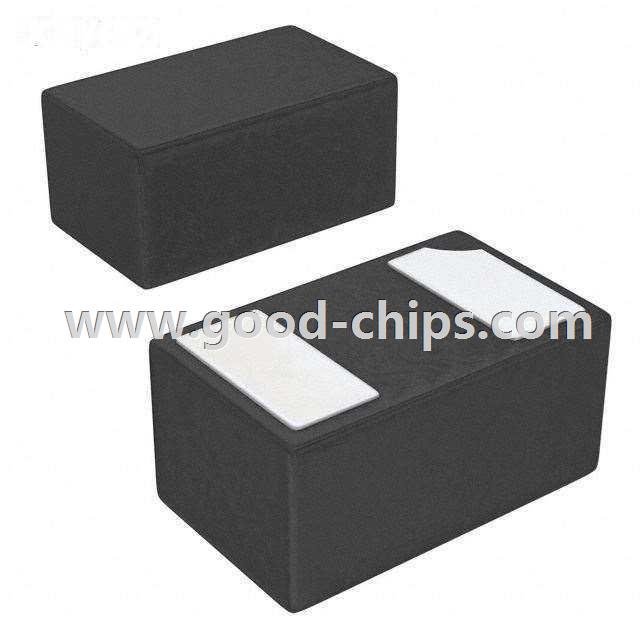

Package / Case | 2-UDFN | |
Supplier Device Package | SGP1610N2 | |
Standard Package | 10,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | UCLAMP1071P.TNT | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
UCLAMP1071P.TNT is in stock for immediate shipping now. We are the distributor of Semtech Corporation all series components. The condition of UCLAMP1071P.TNT is new and unused, you can buy UCLAMP1071P.TNT Semtech Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for UCLAMP1071P.TNT.
