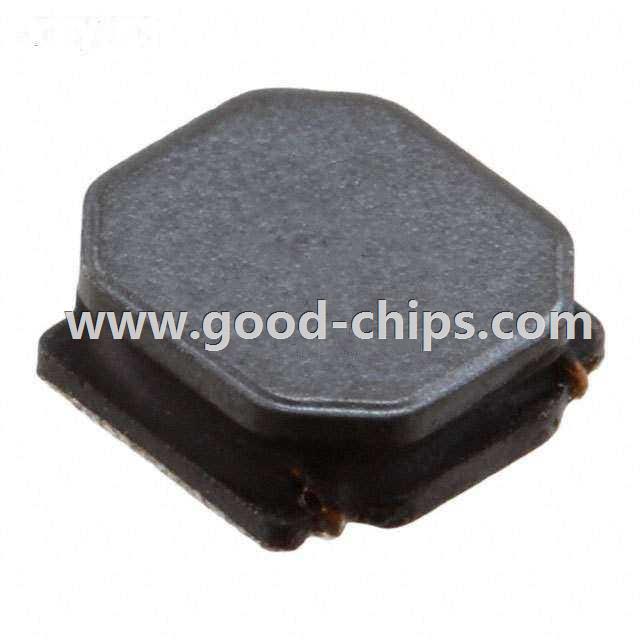

| Manufacturer Part Number: | TYS5020220M-10 |
|---|---|
| Manufacturer: | Laird-Signal Integrity Products |
| Product Category: | Fixed Inductors |
| Available Quantity: | 15101 Pieces |
| Unit Price: | Quote by Email |
| Description: | 22µH Shielded Inductor 1.1A 226 mOhm Max 2020 (5050 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TYS5020220M-10 Datasheet |
| Internal Part Number | 898-TYS5020220M-10 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | TYS Power Inductors | |
| Online Catalog | TYS Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Laird-Signal Integrity Products | |
| Series | TYS5020 | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Type | - | |
| Material - Core | - | |
| Inductance | 22µH | |
| Tolerance | ±20% | |
| Current Rating | 1.1A | |
| Current - Saturation | 1.15A | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 226 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | 14MHz | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 2020 (5050 Metric) | |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) | |
| Height - Seated (Max) | 0.078" (2.00mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TYS5020220M-10 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TYS5020220M-10 is in stock for immediate shipping now. We are the distributor of Laird-Signal Integrity Products all series components. The condition of TYS5020220M-10 is new and unused, you can buy TYS5020220M-10 Laird-Signal Integrity Products with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TYS5020220M-10.
