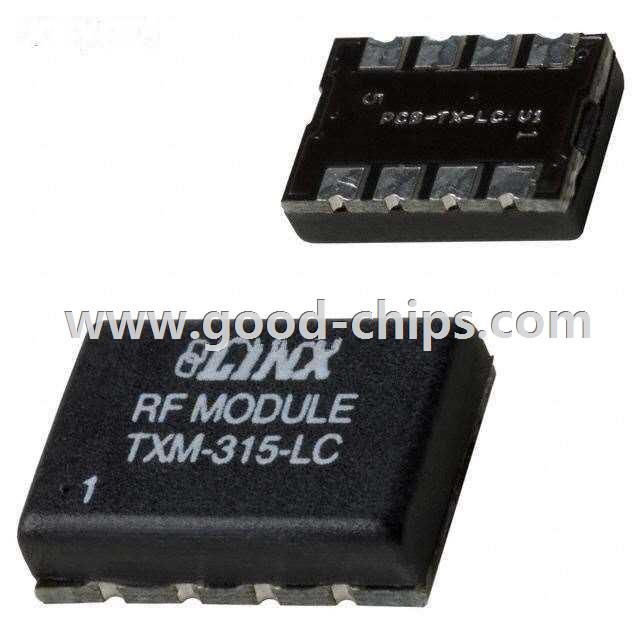

| Manufacturer Part Number: | TXM-315-LC |
|---|---|
| Manufacturer: | Linx Technologies Inc. |
| Product Category: | RF Transmitters |
| Available Quantity: | 9127 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Transmitter ASK, FSK 315MHz -4dBm ~ 4dBm 5 kbps PCB, Surface Mount Antenna Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TXM-315-LC Datasheet |
| Internal Part Number | 898-TXM-315-LC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Considerations for Sending Data Over a Wireless Link FCC and Legal Considerations with Linx Radio Modules Understanding RF Modules Understanding Remote Control and Remote Keyless Entry Introduction to the RF Environment | |
| RoHS Information | RoHS Cert of Compliance | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| PCN Design/Specification | LC and KH2 Series 19/Jul/2010 | |
| Online Catalog | TXM-xxx-LC | |
| Category | RF/IF and RFID | |
| Family | RF Transmitters | |
| Manufacturer | Linx Technologies Inc. | |
| Series | LC | |
| Packaging | Tube | |
| Part Status | Active | |
| Frequency | 315MHz | |
| Applications | ISM, RKE, Security and Fire Alarms | |
| Modulation or Protocol | ASK, FSK | |
| Data Rate (Max) | 5 kbps | |
| Power - Output | -4dBm ~ 4dBm | |
| Current - Transmitting | 3mA | |
| Data Interface | PCB, Surface Mount | |
| Antenna Connector | PCB, Surface Mount | |
| Memory Size | - | |
| Features | - | |
| Voltage - Supply | 2.7 V ~ 5.2 V | |
| Operating Temperature | -30°C ~ 70°C | |
| Package / Case | Surface Mount | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TXM-315-LC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TXM-315-LC is in stock for immediate shipping now. We are the distributor of Linx Technologies Inc. all series components. The condition of TXM-315-LC is new and unused, you can buy TXM-315-LC Linx Technologies Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TXM-315-LC.
