Manufacturer Part Number: | TXB0108DQSR |
---|---|
Manufacturer: | Texas Instruments |
Product Category: | Logic - Translators, Level Shifters |
Available Quantity: | 18010 Pieces |
Unit Price: | Quote by Email |
Description: | Voltage Level Translator Bidirectional 1 Circuit 8 Channel 100Mbps 20-USON (4x2) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TXB0108DQSR Datasheet |
Internal Part Number | 898-TXB0108DQSR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Analog Solutions for Xilinx FPGAs and CPLDs – Texas Instruments | DigiKey | |
Manufacturer Product Page | TXB0108DQSR Specifications | |
Online Catalog | TXB Series | |
Category | Integrated Circuits (ICs) | |
Family | Logic - Translators, Level Shifters | |
Manufacturer | Texas Instruments | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Translator Type | Voltage Level | |
Channel Type | Bidirectional | |
Number of Circuits | 1 | |
Channels per Circuit | 8 | |
Voltage - VCCA | 1.2 V ~ 3.6 V | |
Voltage - VCCB | 1.65 V ~ 5.5 V | |
Input Signal | - | |
Output Signal | - | |
Output Type | Tri-State, Non-Inverted | |
Data Rate | 100Mbps | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Features | Auto-Direction Sensing | |
Mounting Type | Surface Mount | |

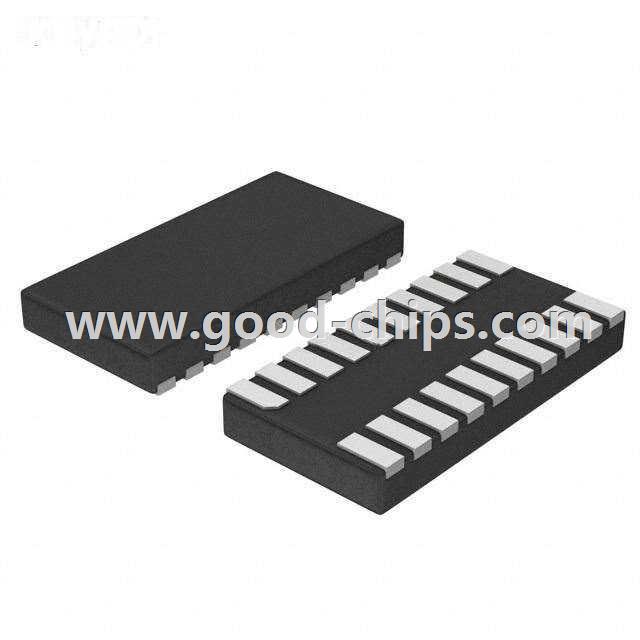

Package / Case | 20-UFDFN | |
Supplier Device Package | 20-USON (4x2) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TXB0108DQSR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TXB0108DQSR is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TXB0108DQSR is new and unused, you can buy TXB0108DQSR Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TXB0108DQSR.
