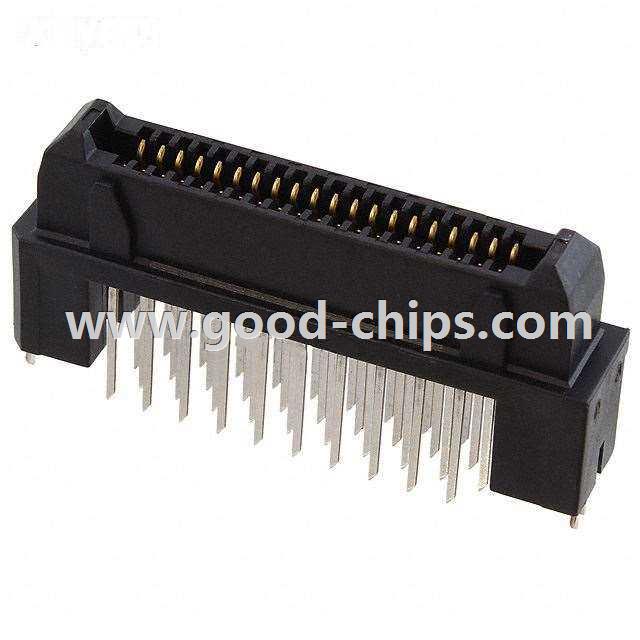

Manufacturer Part Number: | TX24-40R-12ST-E1E |
---|---|
Manufacturer: | JAE Electronics |
Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
Available Quantity: | 9029 Pieces |
Unit Price: | Quote by Email |
Description: | 40 Position Connector Receptacle, Outer Shroud Contacts Through Hole Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TX24-40R-12ST-E1E Datasheet |
Internal Part Number | 898-TX24-40R-12ST-E1E | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | TX24 and TX25 Series | |
Category | Connectors, Interconnects | |
Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
Manufacturer | JAE Electronics | |
Series | TX24 | |
Packaging | Tray | |
Part Status | Active | |
Connector Type | Receptacle, Outer Shroud Contacts | |
Number of Positions | 40 | |
Pitch | 0.050" (1.27mm) | |
Number of Rows | 2 | |
Mounting Type | Through Hole | |
Features | Board Lock | |
Contact Finish | Gold | |
Contact Finish Thickness | 3.9µin (0.10µm) | |
Mated Stacking Heights | 18mm, 20mm, 24mm | |
Height Above Board | 0.642" (16.30mm) | |
Standard Package | 77 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TX24-40R-12ST-E1E | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TX24-40R-12ST-E1E is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of TX24-40R-12ST-E1E is new and unused, you can buy TX24-40R-12ST-E1E JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TX24-40R-12ST-E1E.
