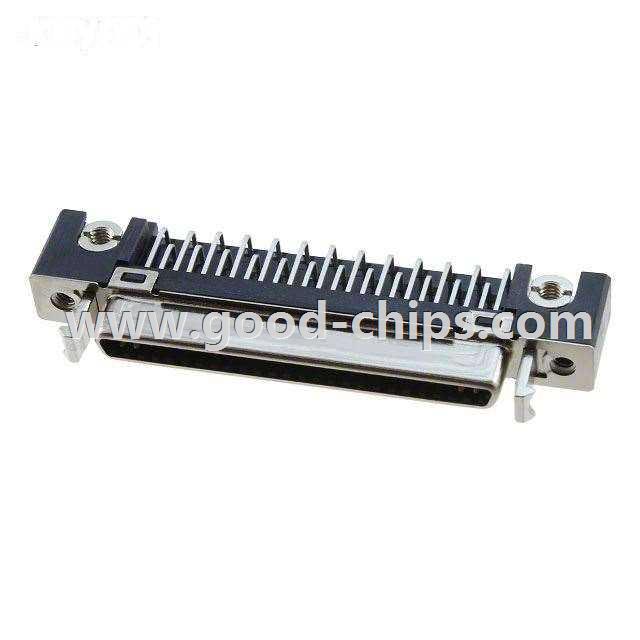

Manufacturer Part Number: | TX20A-50R-D2LT-A1LHE |
---|---|
Manufacturer: | JAE Electronics |
Product Category: | D-Shaped Connectors - Centronics |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 50 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TX20A-50R-D2LT-A1LHE Datasheet |
Internal Part Number | 898-TX20A-50R-D2LT-A1LHE | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | D-Shaped Connectors - Centronics | |
Manufacturer | JAE Electronics | |
Series | TX20A | |
Part Status | Obsolete | |
Connector Style | Outer Shroud Contacts | |
Connector Type | Receptacle | |
Number of Positions | 50 | |
Number of Rows | 2 | |
Mounting Type | Panel Mount, Through Hole, Right Angle | |
Termination | Solder | |
Flange Feature | Mating Side (M2); Latchblocks | |
Type | - | |
Features | Board Lock, Shielded | |
Contact Finish | Gold | |
Contact Finish Thickness | 3.9µin (0.10µm) | |
Standard Package | 60 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TX20A-50R-D2LT-A1LHE | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TX20A-50R-D2LT-A1LHE is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of TX20A-50R-D2LT-A1LHE is new and unused, you can buy TX20A-50R-D2LT-A1LHE JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TX20A-50R-D2LT-A1LHE.
