| Manufacturer Part Number: | TX20A-50R-D2GF1-A1LDE |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | D-Shaped Connectors - Centronics |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

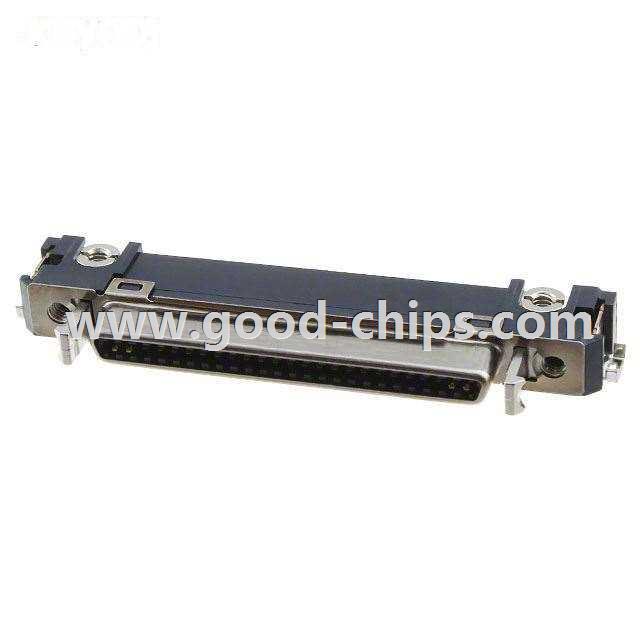

| Description: | 50 Position Receptacle Connector Surface Mount, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TX20A-50R-D2GF1-A1LDE Datasheet |
| Internal Part Number | 898-TX20A-50R-D2GF1-A1LDE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | D-Shaped Connectors - Centronics | |
| Manufacturer | JAE Electronics | |
| Series | TX20A | |
| Part Status | Obsolete | |
| Connector Style | Outer Shroud Contacts | |
| Connector Type | Receptacle | |
| Number of Positions | 50 | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Flange Feature | Mating Side (M2) | |
| Type | - | |
| Features | Shielded, Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 3.9µin (0.10µm) | |
| Standard Package | 40 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TX20A-50R-D2GF1-A1LDE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TX20A-50R-D2GF1-A1LDE is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of TX20A-50R-D2GF1-A1LDE is new and unused, you can buy TX20A-50R-D2GF1-A1LDE JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TX20A-50R-D2GF1-A1LDE.
