| Manufacturer Part Number: | TWR-S08UNIV-DEMO |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Evaluation Boards - Embedded - MCU, DSP |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

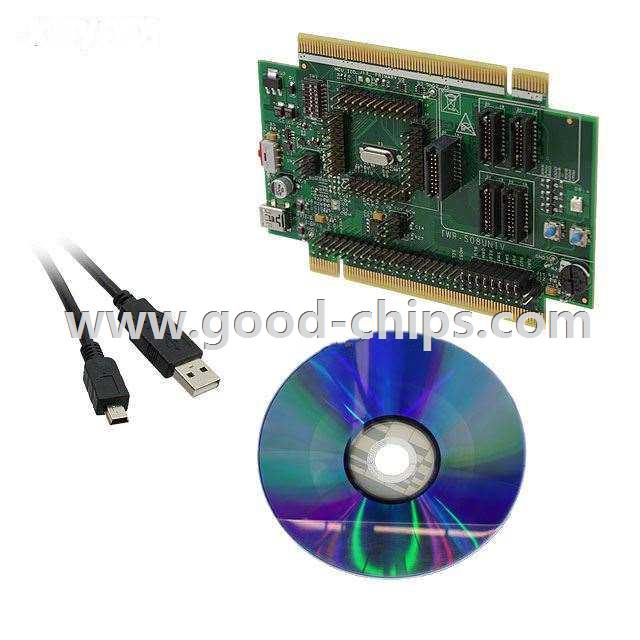

| Description: | TWR-RS08DC, TWR-S08DC Freescale Tower System HCS08, RS08 MCU 8-Bit HCS08, RS08 Embedded Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TWR-S08UNIV-DEMO Datasheet |
| Internal Part Number | 898-TWR-S08UNIV-DEMO | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Freescale Tower Overview - Another Geek Moment Freescale Tower Labs 1 & 2 - Another Geek Moment | |
| Design Resources | TWR-S08UNIV Schematic Development Tool Selector | |
| Featured Product | Tower Controller Module | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Embedded - MCU, DSP | |
| Manufacturer | Freescale Semiconductor - NXP | |
| Series | HCS08, RS08 | |
| Part Status | Obsolete | |
| Board Type | Evaluation Platform | |
| Type | MCU 8-Bit | |
| Core Processor | HCS08, RS08 | |
| Operating System | - | |
| Platform | Freescale Tower System | |
| For Use With/Related Products | TWR-RS08DC, TWR-S08DC | |
| Mounting Type | Socket | |
| Contents | Board(s) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TWR-S08UNIV-DEMO | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TWR-S08UNIV-DEMO is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of TWR-S08UNIV-DEMO is new and unused, you can buy TWR-S08UNIV-DEMO NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TWR-S08UNIV-DEMO.
