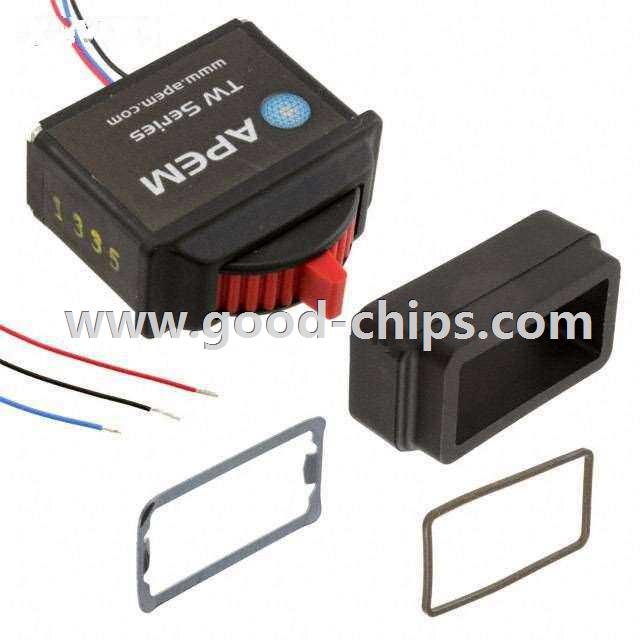

TW01RED1

TW01RED1
Manufacturer Part Number:TW01RED1
Manufacturer:
Product Category:Navigation Switches, Joystick
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:Thumbwheel, 1 - Axis Analog (Hall Effect) Output
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: TW01RED1 Datasheet
TW01RED1´s Parameters
Internal Part Number898-TW01RED1
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Online Catalog TW Series
CategorySwitches
FamilyNavigation Switches, Joystick
ManufacturerApem Inc.
SeriesTW
Part StatusActive
TypeThumbwheel, 1 - Axis
Actuator TypeThumbwheel
Switch Function2-Way Directional
Functions, Extra-
OutputAnalog (Hall Effect)
Voltage - Supply5VDC
Current Rating-
Voltage Rating - AC-
Voltage Rating - DC-
Contact Material-
Contact Finish-
Mounting TypePanel Mount
Termination StyleWire Leads
Operating Temperature-40°C ~ 85°C
Panel Cutout DimensionsRectangular - 36.60mm x 16.30mm
Ingress ProtectionIP67 - Dust Tight, Waterproof
FeaturesRed Actuator
Mechanical Life5,000,000 Cycles
Electrical Life-
Operating Force70gf
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement PartTW01RED1
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

TW01RED1 is in stock for immediate shipping now. We are the distributor of Apem Inc. all series components. The condition of TW01RED1 is new and unused, you can buy TW01RED1 Apem Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for TW01RED1.
