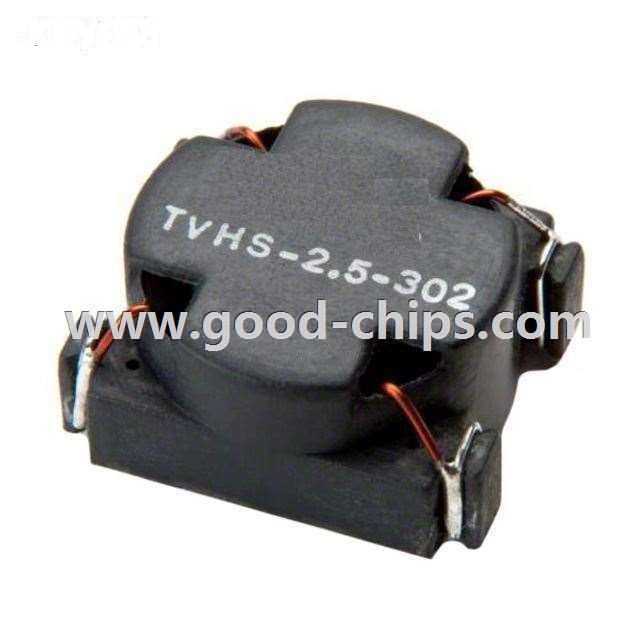

| Manufacturer Part Number: | TVHS-2.5-302 |
|---|---|
| Manufacturer: | Amgis, LLC |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 3mH @ 10kHz 2 Line Common Mode Choke Surface Mount 2.5A DCR 80 mOhm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TVHS-2.5-302 Datasheet |
| Internal Part Number | 898-TVHS-2.5-302 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | Amgis, LLC | |
| Series | TVH | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Filter Type | - | |
| Number of Lines | 2 | |
| Impedance @ Frequency | - | |
| Inductance @ Frequency | 3mH @ 10kHz | |
| Current Rating (Max) | 2.5A | |
| DC Resistance (DCR) (Max) | 80 mOhm | |
| Voltage Rating - DC | - | |
| Voltage Rating - AC | 1500V (1.5kV) | |
| Operating Temperature | -40°C ~ 125°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.760" L x 0.662" W (19.31mm x 16.82mm) | |
| Height (Max) | 0.390" (9.90mm) | |
| Package / Case | Horizontal, 4 PC Pad | |
| Standard Package | 220 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TVHS-2.5-302 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TVHS-2.5-302 is in stock for immediate shipping now. We are the distributor of Amgis, LLC all series components. The condition of TVHS-2.5-302 is new and unused, you can buy TVHS-2.5-302 Amgis, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TVHS-2.5-302.
