| Manufacturer Part Number: | TUSB1105RTZR |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Interface - Drivers, Receivers, Transceivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1/1 Transceiver Half USB 2.0 16-QFN-EP (2.6x1.8) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TUSB1105RTZR Datasheet |
| Internal Part Number | 898-TUSB1105RTZR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Copper Wire Base Metal 19/Jun/2014 Copper Wire Revision B 16/Dec/2014 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | USB Transceivers | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Drivers, Receivers, Transceivers | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Transceiver | |
| Protocol | USB 2.0 | |
| Number of Drivers/Receivers | 1/1 | |
| Duplex | Half | |
| Receiver Hysteresis | 450mV | |
| Data Rate | 1.5Mbps | |
| Voltage - Supply | 1.65 V ~ 3.6 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

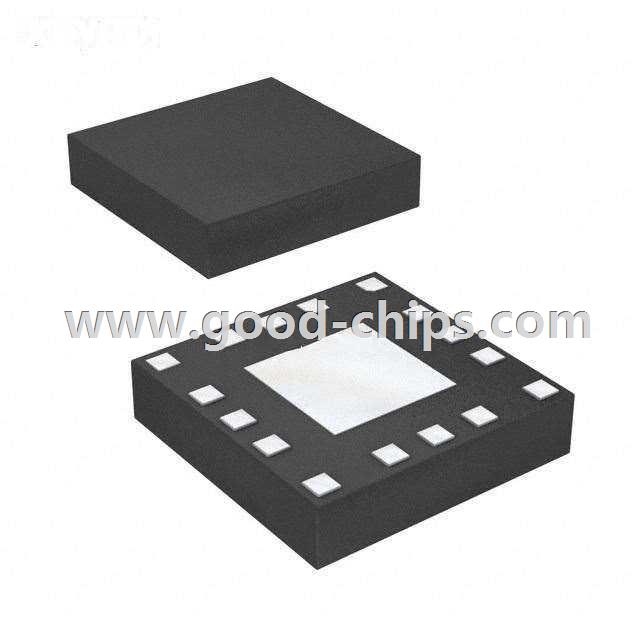

| Package / Case | 16-UFQFN Exposed Pad | |
| Supplier Device Package | 16-QFN-EP (2.6x1.8) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TUSB1105RTZR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TUSB1105RTZR is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TUSB1105RTZR is new and unused, you can buy TUSB1105RTZR Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TUSB1105RTZR.
