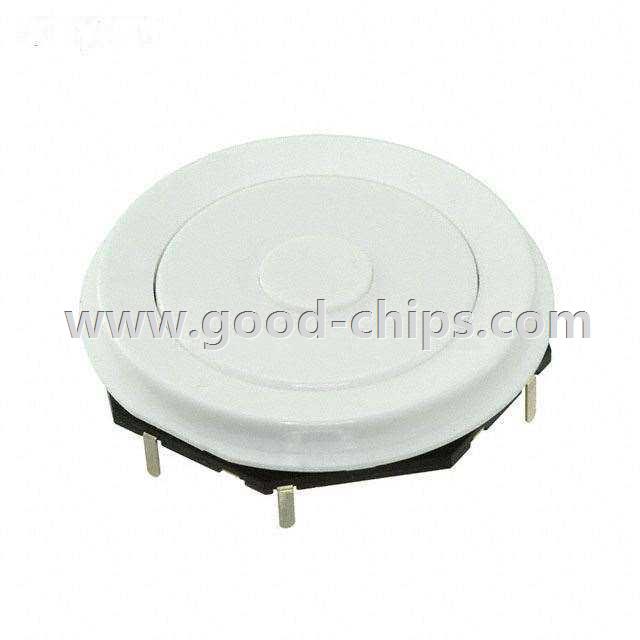

| Manufacturer Part Number: | TSWB3NC LFS |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Navigation Switches, Joystick |
| Available Quantity: | 9174 Pieces |
| Unit Price: | Quote by Email |
| Description: | Navigation Switch, 2 - Axis Digital (Mechanical Switch) Output |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TSWB3NC LFS Datasheet |
| Internal Part Number | 898-TSWB3NC LFS | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Introduction to Electromechanical Switches | |
| RoHS Information | RoHS Cert of Compliance | |
| Online Catalog | TSW Series | |
| Category | Switches | |
| Family | Navigation Switches, Joystick | |
| Manufacturer | C&K Components | |
| Series | TSW | |
| Part Status | Active | |
| Type | Navigation Switch, 2 - Axis | |
| Actuator Type | Scroll Wheel and Directional Ring | |
| Switch Function | 360° Rotational, 4-Way Directional, Center Select | |
| Functions, Extra | - | |
| Output | Digital (Mechanical Switch) | |
| Voltage - Supply | - | |
| Current Rating | 1mA (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 10V | |
| Contact Material | - | |
| Contact Finish | - | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Operating Temperature | 0°C ~ 40°C | |
| Panel Cutout Dimensions | - | |
| Ingress Protection | - | |
| Features | White Actuator | |
| Mechanical Life | 1,000,000 Cycles | |
| Electrical Life | - | |
| Operating Force | 300gf | |
| Standard Package | 600 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TSWB3NC LFS | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TSWB3NC LFS is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of TSWB3NC LFS is new and unused, you can buy TSWB3NC LFS C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TSWB3NC LFS.
