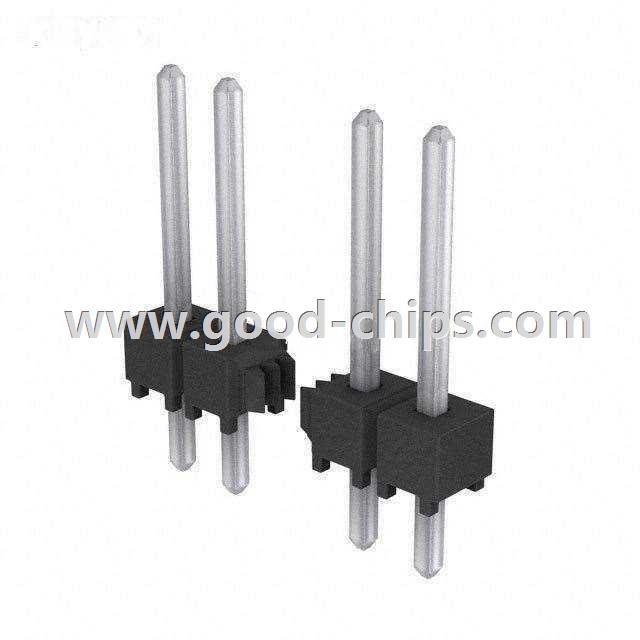

| Manufacturer Part Number: | TSW-127-14-T-S |
|---|---|
| Manufacturer: | Samtec Inc. |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 27 Positions Header, Unshrouded Connector 0.100" (2.54mm) Through Hole Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TSW-127-14-T-S Datasheet |
| Internal Part Number | 898-TSW-127-14-T-S | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Board-to-Board Connectors | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | TSW Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Samtec Inc. | |
| Series | TSW | |
| Packaging | Bulk | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Unshrouded | |
| Number of Positions | 27 | |
| Number of Positions Loaded | All | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Contact Mating Length | 0.320" (8.13mm) | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | - | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Color | Black | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TSW-127-14-T-S | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TSW-127-14-T-S is in stock for immediate shipping now. We are the distributor of Samtec Inc. all series components. The condition of TSW-127-14-T-S is new and unused, you can buy TSW-127-14-T-S Samtec Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TSW-127-14-T-S.
