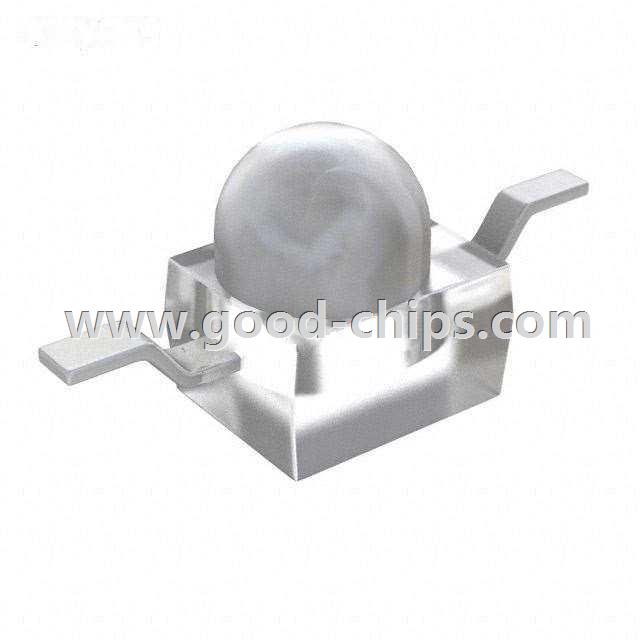

| Manufacturer Part Number: | TSMF1000 |
|---|---|
| Manufacturer: | Vishay Semiconductor Opto Division |
| Product Category: | Infrared, UV, Visible Emitters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Infrared (IR) Emitter 890nm 1.3V 100mA 2.5mW/sr @ 20mA 34° 2-SMD, Z-Bend |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TSMF1000 Datasheet |
| Internal Part Number | 898-TSMF1000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | TSMF1000/1020/1030 | |
| Category | Optoelectronics | |
| Family | Infrared, UV, Visible Emitters | |
| Manufacturer | Vishay Semiconductor Opto Division | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Infrared (IR) | |
| Current - DC Forward (If) (Max) | 100mA | |
| Radiant Intensity (Ie) Min @ If | 2.5mW/sr @ 20mA | |
| Wavelength | 890nm | |
| Voltage - Forward (Vf) (Typ) | 1.3V | |
| Viewing Angle | 34° | |
| Orientation | Top View | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 2-SMD, Z-Bend | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TSMF1000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TSMF1000 is in stock for immediate shipping now. We are the distributor of Vishay Semiconductor Opto Division all series components. The condition of TSMF1000 is new and unused, you can buy TSMF1000 Vishay Semiconductor Opto Division with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TSMF1000.
