Manufacturer Part Number: | TSM9120EXK+T |
---|---|
Manufacturer: | Touchstone Semiconductor |
Product Category: | Linear - Comparators |
Available Quantity: | 12010 Pieces |
Unit Price: | Quote by Email |
Description: | Comparator General Purpose Open Drain SC-70-5 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TSM9120EXK+T Datasheet |
Internal Part Number | 898-TSM9120EXK+T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | TSM9117-TSM9120 Comparators | |
Online Catalog | Comparators - 1 element | |
Category | Integrated Circuits (ICs) | |
Family | Linear - Comparators | |
Manufacturer | Touchstone Semiconductor | |
Series | TSM91x | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | General Purpose | |
Number of Elements | 1 | |
Output Type | Open Drain | |
Voltage - Supply, Single/Dual (±) | 1.6 V ~ 5.5 V | |
Voltage - Input Offset (Max) | 5mV | |
Current - Input Bias (Max) | 1nA | |
Current - Output (Typ) | 50mA | |
Current - Quiescent (Max) | 800nA | |
CMRR, PSRR (Typ) | 66.02dB CMRR, 80dB PSRR | |
Propagation Delay (Max) | 45µs | |
Hysteresis | 4mV | |
Operating Temperature | -40°C ~ 85°C | |

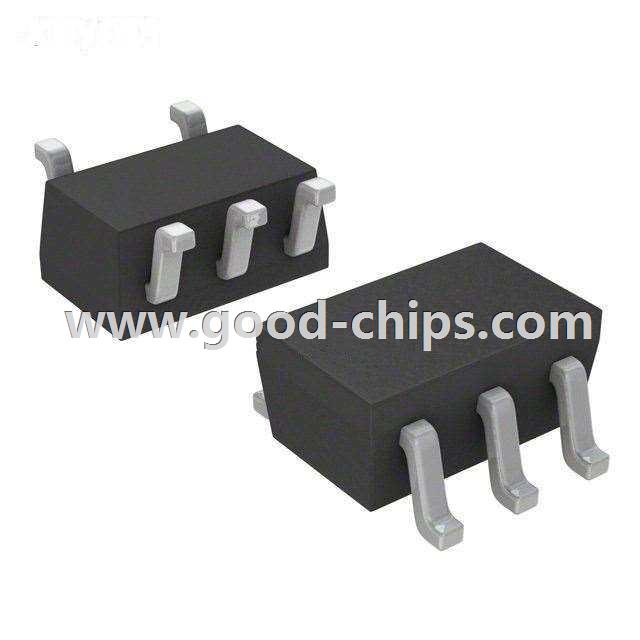

Package / Case | 6-VSSOP (5 Lead), SC-88A, SOT-353 | |
Mounting Type | Surface Mount | |
Supplier Device Package | SC-70-5 | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TSM9120EXK+T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TSM9120EXK+T is in stock for immediate shipping now. We are the distributor of Touchstone Semiconductor all series components. The condition of TSM9120EXK+T is new and unused, you can buy TSM9120EXK+T Touchstone Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TSM9120EXK+T.
