Manufacturer Part Number: | TSC2005IYZLT |
---|---|
Manufacturer: | Texas Instruments |
Product Category: | Data Acquisition - Touch Screen Controllers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Touchscreen Controller 4-Wire 12 bit SPI Interface 28-DSBGA |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TSC2005IYZLT Datasheet |
Internal Part Number | 898-TSC2005IYZLT | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Data Converter Basics | |
Manufacturer Product Page | TSC2005IYZLT Specifications | |
Online Catalog | Resistive | |
Category | Integrated Circuits (ICs) | |
Family | Data Acquisition - Touch Screen Controllers | |
Manufacturer | Texas Instruments | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Resistive | |
Touch Panel Interface | 4-Wire | |
Number of Inputs/Keys | 1 TSC | |
Resolution (Bits) | 12 b | |
Evaluation Tools | Available | |
Data Interface | SPI | |
Data Rate/Sampling Rate (SPS, BPS) | 50 | |
Voltage Reference | External | |
Voltage - Supply | 1.6 V ~ 3.6 V | |
Current - Supply | - | |
Operating Temperature | -40°C ~ 85°C | |
Mounting Type | Surface Mount | |

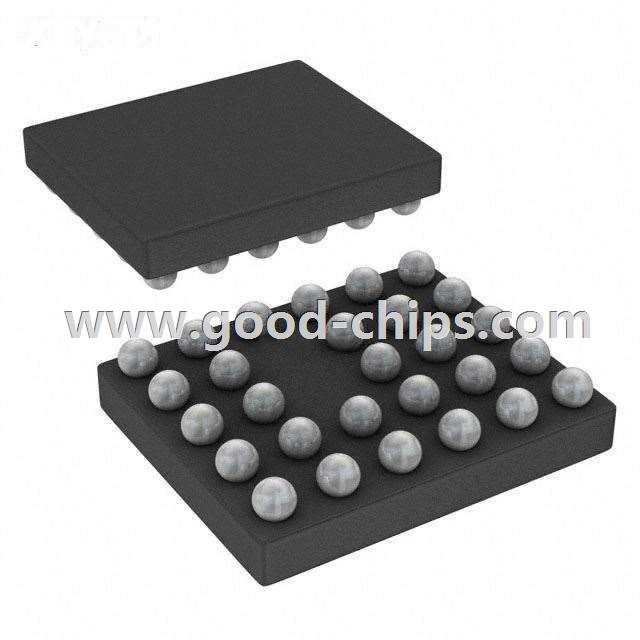

Package / Case | 28-UFBGA, DSBGA | |
Supplier Device Package | 28-DSBGA | |
Standard Package | 250 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TSC2005IYZLT | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TSC2005IYZLT is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TSC2005IYZLT is new and unused, you can buy TSC2005IYZLT Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TSC2005IYZLT.
