| Manufacturer Part Number: | TS5A22366YFCR |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2 Circuit IC Switch 2:1 1 Ohm 12-DSBGA (1.6x1.2) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TS5A22366YFCR Datasheet |
| Internal Part Number | 898-TS5A22366YFCR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Signal Switch Solutions | |
| Manufacturer Product Page | TS5A22366YFCR Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Switch | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Switch Circuit | SPDT | |
| Multiplexer/Demultiplexer Circuit | 2:1 | |
| Number of Circuits | 2 | |
| On-State Resistance (Max) | 1 Ohm | |
| Channel-to-Channel Matching (ΔRon) | 100 mOhm | |
| Voltage - Supply, Single (V+) | 2.25 V ~ 5.5 V | |
| Voltage - Supply, Dual (V±) | ±2.25 V ~ 5.5 V | |
| Switch Time (Ton, Toff) (Max) | 374ns, 325ns | |
| -3db Bandwidth | 32MHz | |
| Charge Injection | 168pC | |
| Channel Capacitance (CS(off), CD(off)) | 48pF | |
| Current - Leakage (IS(off)) (Max) | 50nA | |
| Crosstalk | -70dB @ 100kHz | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

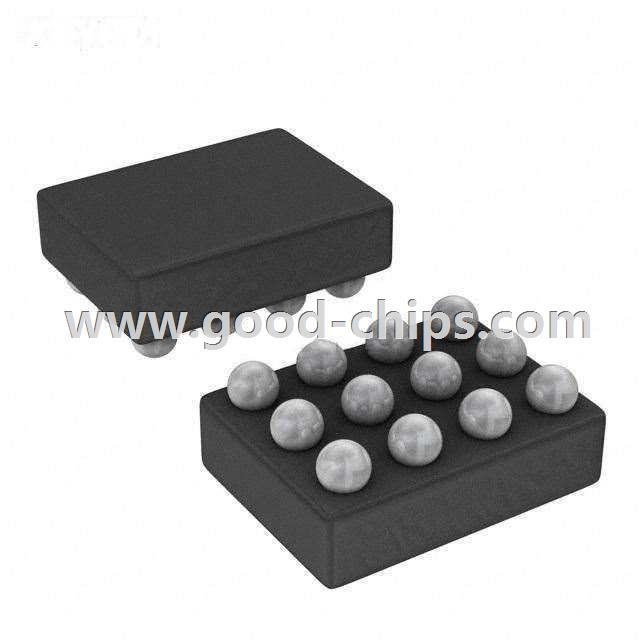

| Package / Case | 12-UFBGA, DSBGA | |
| Supplier Device Package | 12-DSBGA (1.6x1.2) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TS5A22366YFCR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TS5A22366YFCR is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TS5A22366YFCR is new and unused, you can buy TS5A22366YFCR Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TS5A22366YFCR.
