| Manufacturer Part Number: | TS5A22362YZPR |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 21010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2 Circuit IC Switch 2:1 740 mOhm 10-DSBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TS5A22362YZPR Datasheet |
| Internal Part Number | 898-TS5A22362YZPR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Datasheet Update 01/Jul/2015 | |
| PCN Assembly/Origin | Qualification Assembly Site 09/Jun/2014 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Switch | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Switch Circuit | SPDT | |
| Multiplexer/Demultiplexer Circuit | 2:1 | |
| Number of Circuits | 2 | |
| On-State Resistance (Max) | 740 mOhm | |
| Channel-to-Channel Matching (ΔRon) | 40 mOhm | |
| Voltage - Supply, Single (V+) | 2.3 V ~ 5.5 V | |
| Voltage - Supply, Dual (V±) | - | |
| Switch Time (Ton, Toff) (Max) | 80ns, 70ns | |
| -3db Bandwidth | 18.3MHz | |
| Charge Injection | 10pC | |
| Channel Capacitance (CS(off), CD(off)) | 70pF | |
| Current - Leakage (IS(off)) (Max) | 50nA | |
| Crosstalk | -78dB @ 100kHz | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

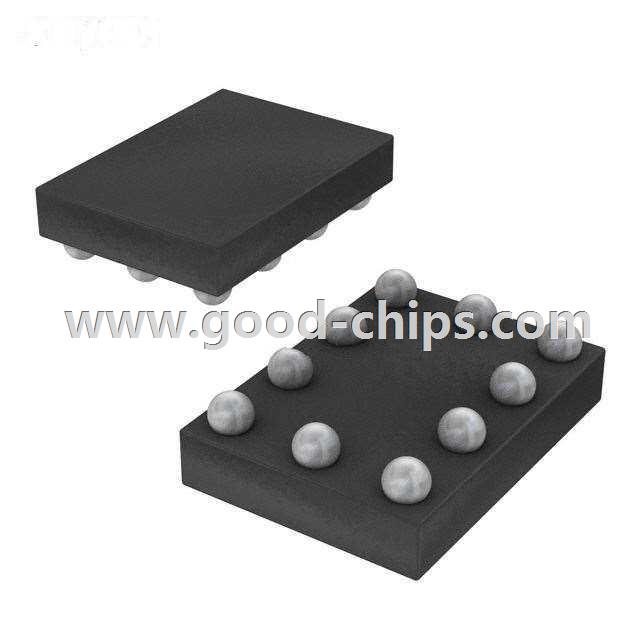

| Package / Case | 10-XFBGA, DSBGA | |
| Supplier Device Package | 10-DSBGA | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TS5A22362YZPR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TS5A22362YZPR is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TS5A22362YZPR is new and unused, you can buy TS5A22362YZPR Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TS5A22362YZPR.
