Manufacturer Part Number: | TS2PCIE2212ZAHR |
---|---|
Manufacturer: | Texas Instruments |
Product Category: | Interface - Analog Switches - Special Purpose |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | IC PCI-EXPRESS SIGNAL SW 48NFBGA |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TS2PCIE2212ZAHR Datasheet |
Internal Part Number | 898-TS2PCIE2212ZAHR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | Analog Switches - Special Purpose | |
Category | Integrated Circuits (ICs) | |
Family | Interface - Analog Switches - Special Purpose | |
Manufacturer | Texas Instruments | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Applications | PCIe | |
Multiplexer/Demultiplexer Circuit | 2:1 | |
Switch Circuit | - | |
Number of Channels | 2 | |
On-State Resistance (Max) | 17 Ohm | |
Voltage - Supply, Single (V+) | 1.7 V ~ 1.9 V | |
Voltage - Supply, Dual (V±) | - | |
-3db Bandwidth | - | |
Features | - | |
Operating Temperature | 0°C ~ 85°C (TA) | |

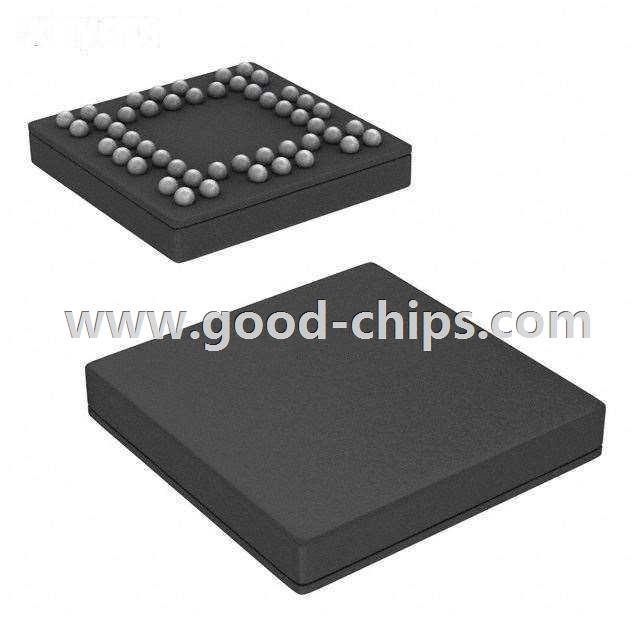

Package / Case | 48-LFBGA | |
Supplier Device Package | 48-NFBGA (5x5) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TS2PCIE2212ZAHR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TS2PCIE2212ZAHR is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TS2PCIE2212ZAHR is new and unused, you can buy TS2PCIE2212ZAHR Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TS2PCIE2212ZAHR.
