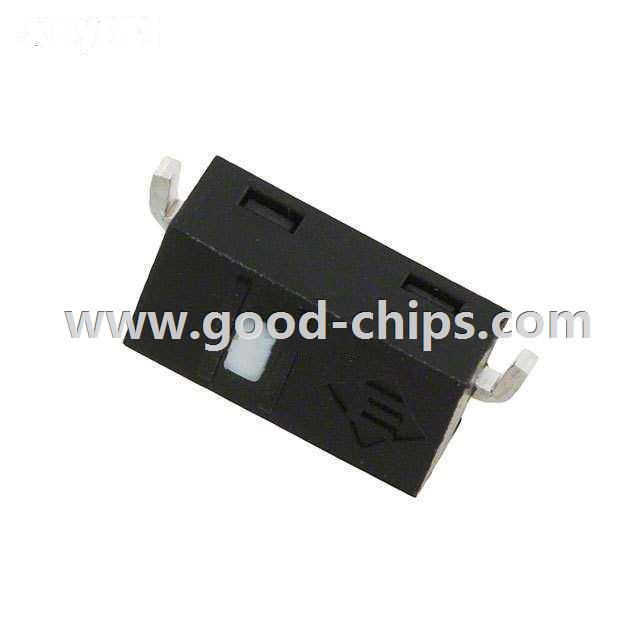

| Manufacturer Part Number: | TS20100F070S |
|---|---|
| Manufacturer: | E-Switch |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 13810 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACTION SPST-NO 100MA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TS20100F070S Datasheet |
| Internal Part Number | 898-TS20100F070S | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Switch Overview | |
| RoHS Information | TS-2 Series RoHS Cert of Compliance | |
| Featured Product | TS2 Series Switches | |
| 3D Model | TS20100F070S.stp | |
| Online Catalog | TS2 Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | E-Switch | |
| Series | TS2 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Current Rating | 100mA (AC/DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 48V | |
| Actuator Type | Round (Pin Plunger) | |
| Mounting Type | Surface Mount | |
| Termination Style | SMD (SMT) Tab | |
| Ingress Protection | - | |
| Features | - | |
| Operating Force, Torque | 70gf | |
| Release Force | - | |
| Pretravel | 0.008" (0.2mm) | |
| Differential Travel | - | |
| Overtravel | - | |
| Operating Position | 0.130" (3.3mm) | |
| Mechanical Life | 3,000,000 Cycles | |
| Electrical Life | - | |
| Operating Temperature | -25°C ~ 85°C | |
| Standard Package | 1,200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TS20100F070S | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TS20100F070S is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of TS20100F070S is new and unused, you can buy TS20100F070S E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TS20100F070S.
