Manufacturer Part Number: | TS110-8A1-AP |
---|---|
Manufacturer: | STMicroelectronics |
Product Category: | Thyristors - SCRs |
Available Quantity: | 11010 Pieces |
Unit Price: | Quote by Email |
Description: | SCR 800V 1.25A Sensitive Gate Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TS110-8A1-AP Datasheet |
Internal Part Number | 898-TS110-8A1-AP | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Sensitive Gate SCRs | |
Category | Discrete Semiconductor Products | |
Family | Thyristors - SCRs | |
Manufacturer | STMicroelectronics | |
Series | - | |
Packaging | Tape & Box (TB) | |
Part Status | Active | |
Voltage - Off State | 800V | |
Voltage - Gate Trigger (Vgt) (Max) | 800mV | |
Current - Gate Trigger (Igt) (Max) | 100µA | |
Voltage - On State (Vtm) (Max) | 1.6V | |
Current - On State (It (AV)) (Max) | 800mA | |
Current - On State (It (RMS)) (Max) | 1.25A | |
Current - Hold (Ih) (Max) | 12mA | |
Current - Off State (Max) | 1µA | |
Current - Non Rep. Surge 50, 60Hz (Itsm) | 20A, 21A | |
SCR Type | Sensitive Gate | |
Operating Temperature | -40°C ~ 125°C | |
Mounting Type | Through Hole | |

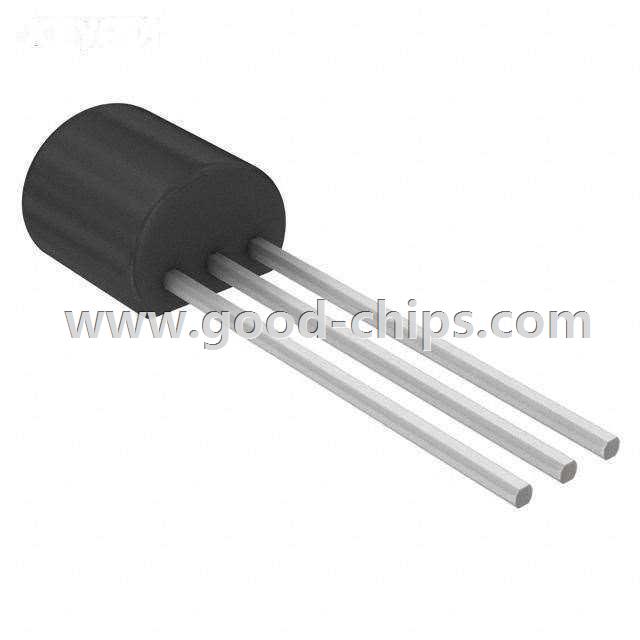

Package / Case | TO-226-3, TO-92-3 (TO-226AA) | |
Supplier Device Package | * | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TS110-8A1-AP | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TS110-8A1-AP is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of TS110-8A1-AP is new and unused, you can buy TS110-8A1-AP STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TS110-8A1-AP.
