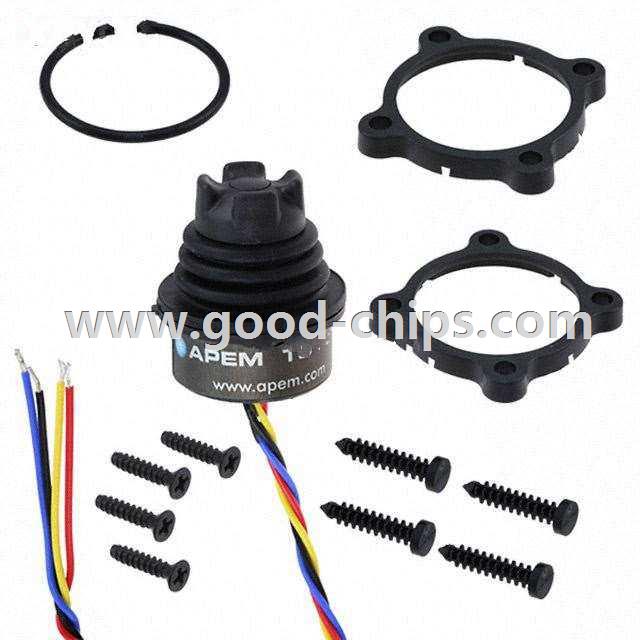

| Manufacturer Part Number: | TS-1D1S00A-1294 |
|---|---|
| Manufacturer: | Apem Inc. |
| Product Category: | Navigation Switches, Joystick |
| Available Quantity: | 9421 Pieces |
| Unit Price: | Quote by Email |
| Description: | Thumbstick, 2 - Axis Analog (Hall Effect) Output |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TS-1D1S00A-1294 Datasheet |
| Internal Part Number | 898-TS-1D1S00A-1294 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Joysticks - Hall Effects Based Joystick Overview TS Series Miniature Hall Effect Joysticks | |
| Featured Product | TS Series Thumbstick Hall-Effect Joysticks | |
| Online Catalog | TS Series | |
| Category | Switches | |
| Family | Navigation Switches, Joystick | |
| Manufacturer | Apem Inc. | |
| Series | TS | |
| Part Status | Active | |
| Type | Thumbstick, 2 - Axis | |
| Actuator Type | Castle | |
| Switch Function | 4-Way Directional | |
| Functions, Extra | - | |
| Output | Analog (Hall Effect) | |
| Voltage - Supply | 5VDC | |
| Current Rating | - | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | - | |
| Contact Material | - | |
| Contact Finish | - | |
| Mounting Type | Panel Mount | |
| Termination Style | Wire Leads | |
| Operating Temperature | -40°C ~ 85°C | |
| Panel Cutout Dimensions | Circular - 25.65mm Dia | |
| Ingress Protection | IP68/69K - Dust Tight, Water Resistant, Waterproof | |
| Features | - | |
| Mechanical Life | 1,000,000 Cycles | |
| Electrical Life | - | |
| Operating Force | 310gf | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TS-1D1S00A-1294 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TS-1D1S00A-1294 is in stock for immediate shipping now. We are the distributor of Apem Inc. all series components. The condition of TS-1D1S00A-1294 is new and unused, you can buy TS-1D1S00A-1294 Apem Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TS-1D1S00A-1294.
