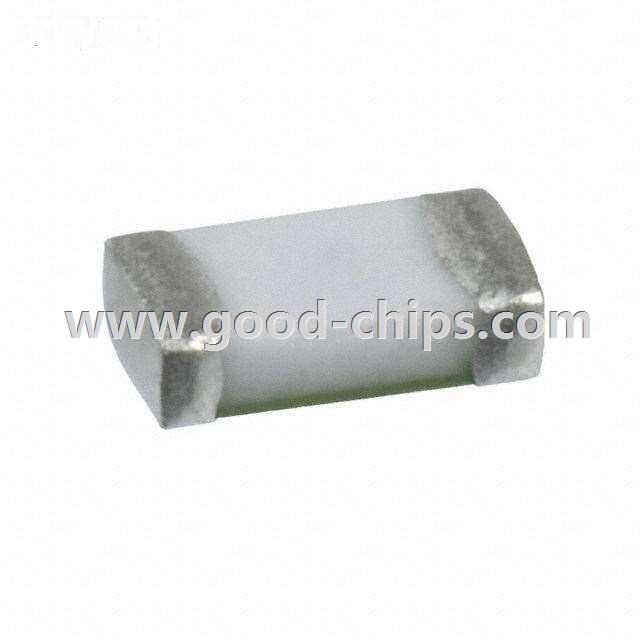

| Manufacturer Part Number: | TR/3216FF5-R |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Fuses |
| Available Quantity: | 24010 Pieces |
| Unit Price: | Quote by Email |
| Description: | FUSE BOARD MNT 5A 32VAC/VDC 1206 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TR/3216FF5-R Datasheet |
| Internal Part Number | 898-TR/3216FF5-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Selecting Fuses - Simple Procedures for Proper OvercurrentProtection of DC-DC Converters | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | 3216FF Series | |
| Category | Circuit Protection | |
| Family | Fuses | |
| Manufacturer | Eaton | |
| Series | Chip 3216FF | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Fuse Type | Board Mount (Cartridge Style Excluded) | |
| Current Rating | 5A | |
| Voltage Rating - AC | 32V | |
| Voltage Rating - DC | 32V | |
| Response Time | Fast | |
| Package / Case | 1206 (3216 Metric) | |
| Mounting Type | Surface Mount | |
| Breaking Capacity @ Rated Voltage | 50A | |
| Melting I²t | 0.534 | |
| Approvals | CSA, UL | |
| Operating Temperature | -55°C ~ 125°C | |
| Color | - | |
| Size / Dimension | 0.126" L x 0.063" W x 0.035" H (3.20mm x 1.60mm x 0.89mm) | |
| DC Cold Resistance | 0.014 Ohm | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TR/3216FF5-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TR/3216FF5-R is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of TR/3216FF5-R is new and unused, you can buy TR/3216FF5-R Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TR/3216FF5-R.
