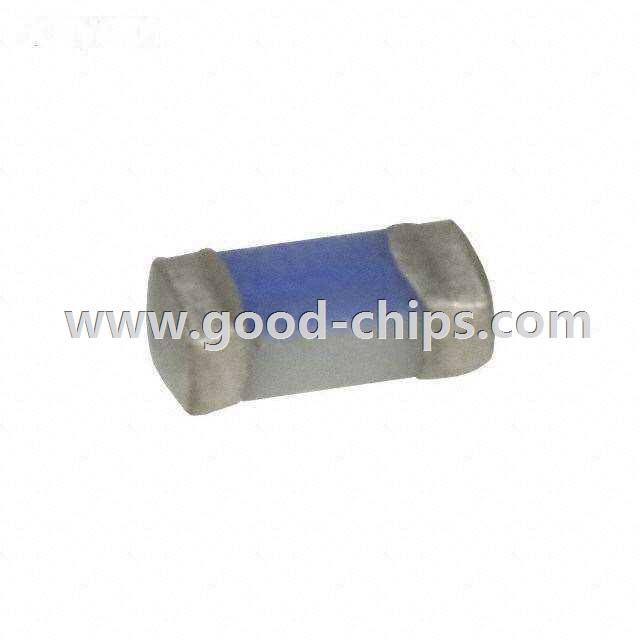

Manufacturer Part Number: | TR/0603FA1-R |
---|---|
Manufacturer: | Eaton |
Product Category: | Fuses |
Available Quantity: | 14010 Pieces |
Unit Price: | Quote by Email |
Description: | FUSE BOARD MNT 1A 32VAC/VDC 0603 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TR/0603FA1-R Datasheet |
Internal Part Number | 898-TR/0603FA1-R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Selecting Fuses - Simple Procedures for Proper OvercurrentProtection of DC-DC Converters | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | CHIP 0603FA Series | |
Category | Circuit Protection | |
Family | Fuses | |
Manufacturer | Eaton | |
Series | CHIP™ 0603FA | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Fuse Type | Board Mount (Cartridge Style Excluded) | |
Current Rating | 1A | |
Voltage Rating - AC | 32V | |
Voltage Rating - DC | 32V | |
Response Time | Fast | |
Package / Case | 0603 (1608 Metric) | |
Mounting Type | Surface Mount | |
Breaking Capacity @ Rated Voltage | 50A | |
Melting I²t | 0.0025 | |
Approvals | CSA, UL | |
Operating Temperature | -55°C ~ 125°C | |
Color | - | |
Size / Dimension | 0.063" L x 0.032" W x 0.019" H (1.60mm x 0.81mm x 0.48mm) | |
DC Cold Resistance | 0.15 Ohm | |
Standard Package | 5,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TR/0603FA1-R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TR/0603FA1-R is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of TR/0603FA1-R is new and unused, you can buy TR/0603FA1-R Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TR/0603FA1-R.
