Manufacturer Part Number: | TPSMD20CA |
---|---|
Manufacturer: | Littelfuse Inc. |
Product Category: | TVS - Diodes |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | TVS DIODE 20VWM 32.4VC DO-214AB |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TPSMD20CA Datasheet |
Internal Part Number | 898-TPSMD20CA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | TVS Diodes 300 W AEC-Q101 Automotive TPSMD Series | |
Category | Circuit Protection | |
Family | TVS - Diodes | |
Manufacturer | Littelfuse Inc. | |
Series | Automotive, AEC-Q101, TPSMD | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Zener | |
Unidirectional Channels | - | |
Bidirectional Channels | 1 | |
Voltage - Reverse Standoff (Typ) | 20V | |
Voltage - Breakdown (Min) | 22.2V | |
Voltage - Clamping (Max) @ Ipp | 32.4V | |
Current - Peak Pulse (10/1000µs) | 92.6A | |
Power - Peak Pulse | 3000W (3kW) | |
Power Line Protection | No | |
Applications | Automotive | |
Capacitance @ Frequency | - | |
Operating Temperature | -65°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

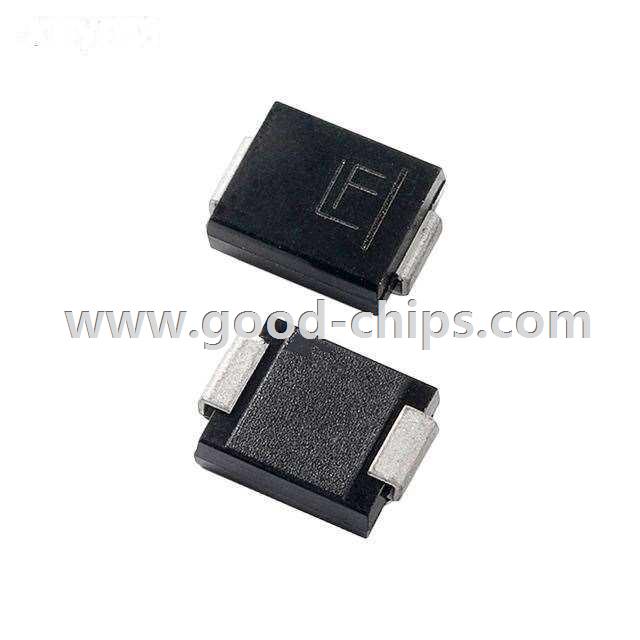

Package / Case | DO-214AB, SMC | |
Supplier Device Package | DO-214AB (SMCJ) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TPSMD20CA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TPSMD20CA is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of TPSMD20CA is new and unused, you can buy TPSMD20CA Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPSMD20CA.
