| Manufacturer Part Number: | TPS84621RUQR |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC BUCK SYNC ADJ 6A 47B1QFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TPS84621RUQR Datasheet |
| Internal Part Number | 898-TPS84621RUQR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Assembly/Test Site Qualification 24/Sep/2014 | |
| Manufacturer Product Page | TPS84621RUQR Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | TPS846 | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 14.5V | |
| Voltage - Output 1 | 0.6 ~ 5.5 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 6A | |
| Power (Watts) - Manufacture Series | - | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | UVLO | |
| Mounting Type | Surface Mount | |

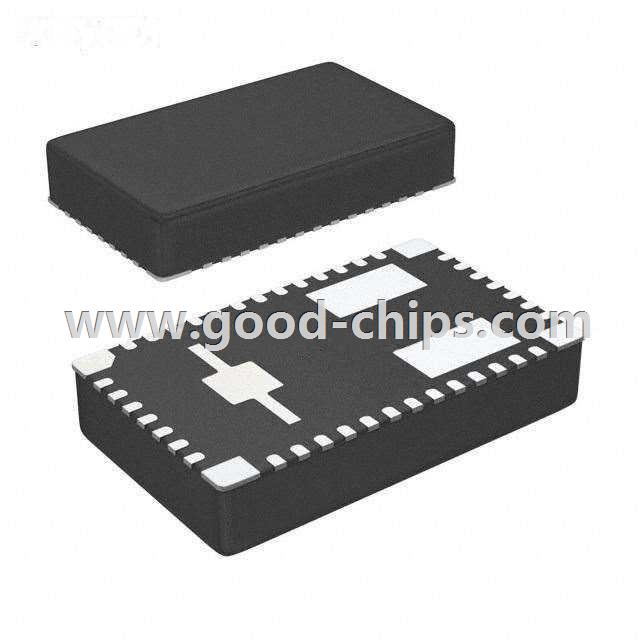

| Package / Case | 47-BQFN | |
| Size / Dimension | 0.59" L x 0.35" W x 0.11" H (15.0mm x 9.0mm x 2.8mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | - | |
| Power (Watts) - Max | 33W | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TPS84621RUQR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TPS84621RUQR is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TPS84621RUQR is new and unused, you can buy TPS84621RUQR Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPS84621RUQR.
