Manufacturer Part Number: | TPS65120RGTRG4 |
---|---|
Manufacturer: | Texas Instruments |
Product Category: | PMIC - Voltage Regulators - Special Purpose |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | - Converter, TFT LCD Voltage Regulator IC 4 Output 16-QFN (3x3) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 2 (1 Year) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TPS65120RGTRG4 Datasheet |
Internal Part Number | 898-TPS65120RGTRG4 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Voltage Regulators - Special Purpose | |
Manufacturer | Texas Instruments | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Applications | Converter, TFT LCD | |
Voltage - Input | 2.5 V ~ 5.5 V | |
Number of Outputs | 4 | |
Voltage - Output | 3 V ~ 5.6 V, Adj up to 20V, Adj down to -18V | |
Operating Temperature | -40°C ~ 85°C | |
Mounting Type | Surface Mount | |

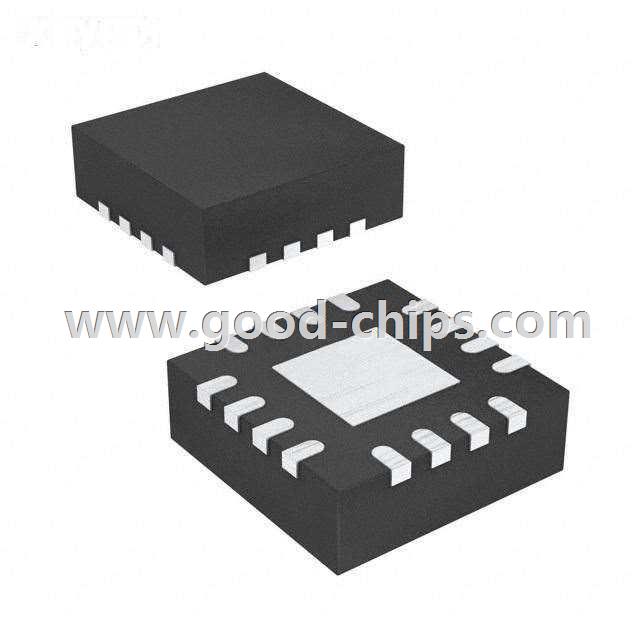

Package / Case | 16-VFQFN Exposed Pad | |
Supplier Device Package | 16-QFN (3x3) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TPS65120RGTRG4 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TPS65120RGTRG4 is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TPS65120RGTRG4 is new and unused, you can buy TPS65120RGTRG4 Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPS65120RGTRG4.
