Manufacturer Part Number: | TPS62315YZR |
---|---|
Manufacturer: | Texas Instruments |
Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Buck Switching Regulator IC Positive Fixed 1.875V 1 Output 500mA 8-UFBGA, CSPBGA |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TPS62315YZR Datasheet |
Internal Part Number | 898-TPS62315YZR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
Manufacturer | Texas Instruments | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Discontinued | |
Function | Step-Down | |
Output Configuration | Positive | |
Topology | Buck | |
Output Type | Fixed | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 2.7V | |
Voltage - Input (Max) | 6V | |
Voltage - Output (Min/Fixed) | 1.875V | |
Voltage - Output (Max) | - | |
Current - Output | 500mA | |
Frequency - Switching | 3MHz | |
Synchronous Rectifier | Yes | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Mounting Type | Surface Mount | |

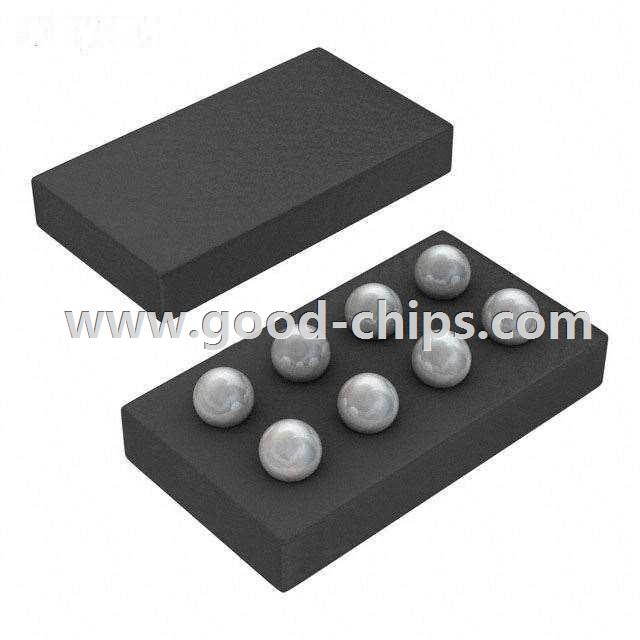

Package / Case | 8-UFBGA, CSPBGA | |
Supplier Device Package | 8-CSP | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TPS62315YZR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TPS62315YZR is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TPS62315YZR is new and unused, you can buy TPS62315YZR Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPS62315YZR.
