Manufacturer Part Number: | TPS61106RGER |
---|---|
Manufacturer: | Texas Instruments |
Product Category: | PMIC - Voltage Regulators - Linear + Switching |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Linear And Switching Voltage Regulator IC 2 Output Step-Up (Boost) Synchronous (1), Linear (LDO) (1) 500kHz 24-VFQFN Exposed Pad |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 2 (1 Year) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TPS61106RGER Datasheet |
Internal Part Number | 898-TPS61106RGER | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Voltage Regulators - Linear + Switching | |
Manufacturer | Texas Instruments | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Topology | Step-Up (Boost) Synchronous (1), Linear (LDO) (1) | |
Function | Any Function | |
Number of Outputs | 2 | |
Frequency - Switching | 500kHz | |
Voltage/Current - Output 1 | 3.3V, 1.8A | |
Voltage/Current - Output 2 | 1.5V, 500mA | |
Voltage/Current - Output 3 | - | |
w/LED Driver | No | |
w/Supervisor | No | |
w/Sequencer | No | |
Voltage - Supply | 0.8 V ~ 3.3 V | |
Operating Temperature | -40°C ~ 85°C | |
Mounting Type | Surface Mount | |

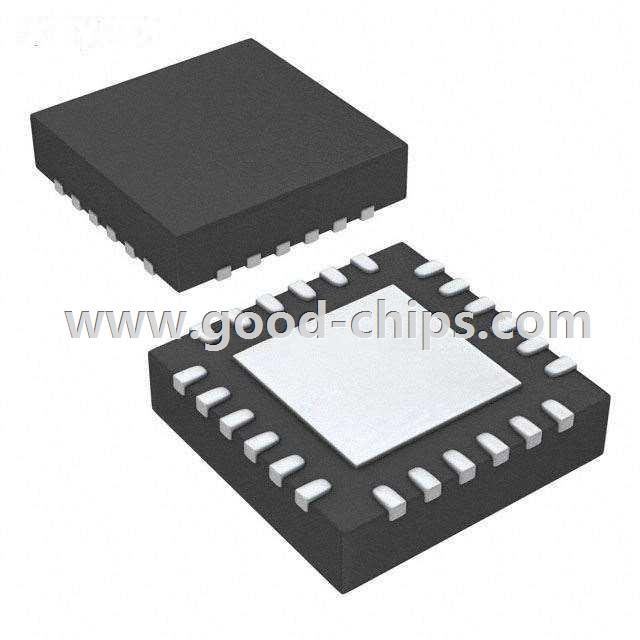

Package / Case | 24-VFQFN Exposed Pad | |
Supplier Device Package | 24-VQFN (4x4) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TPS61106RGER | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TPS61106RGER is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TPS61106RGER is new and unused, you can buy TPS61106RGER Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPS61106RGER.
