| Manufacturer Part Number: | TPS544B25RVFT |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9760 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 0.5V 1 Output 20A 40-LFQFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TPS544B25RVFT Datasheet |
| Internal Part Number | 898-TPS544B25RVFT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | TPS544B25 Design with WEBENCH® Power Designer | |
| Featured Product | TPS544B25/C25 DC-DC Converters | |
| Reference Design Library | DC1582B-B(#1): 50 ~ 400mV in, 2.5 ~ 4.5V Out | |
| PCN Design/Specification | Material Set Chg 27/Jun/2016 Revision A 14/Jul/2016 | |
| Manufacturer Product Page | TPS544B25RVFT Specifications | |
| Online Catalog | Buck (Step-Down) IC | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Texas Instruments | |
| Series | SWIFT™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 18V | |
| Voltage - Output (Min/Fixed) | 0.5V | |
| Voltage - Output (Max) | 5.5V | |
| Current - Output | 20A | |
| Frequency - Switching | 200kHz ~ 1MHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |

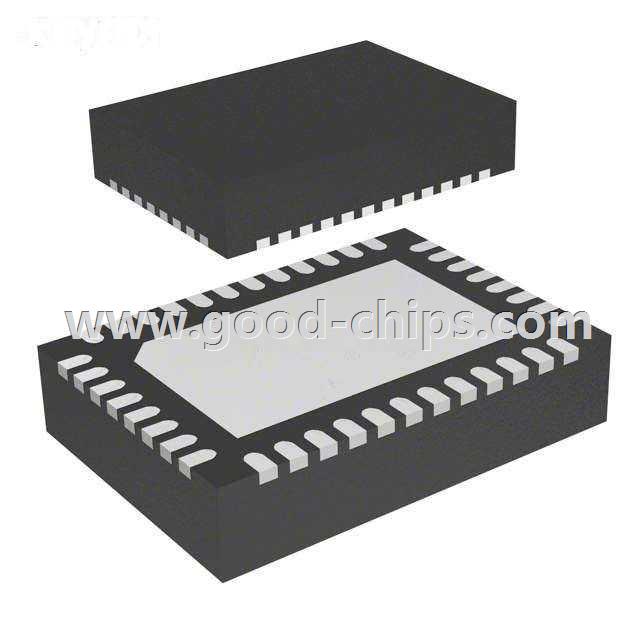

| Package / Case | 40-LFQFN Exposed Pad | |
| Supplier Device Package | 40-LQFN (7x5) | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TPS544B25RVFT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TPS544B25RVFT is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TPS544B25RVFT is new and unused, you can buy TPS544B25RVFT Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPS544B25RVFT.
